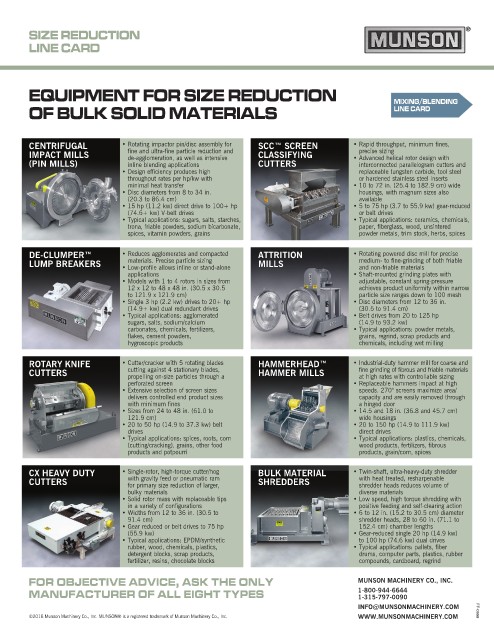

SIZE REDUCTION
LINE CARD
EQUIPMENT FOR SIZE REDUCTION MIXING/BLENDING
OF BULK SOLID MATERIALS LINE CARD
Centrifugal • Rotating impactor pin/disc assembly for sCC™ sCreen • Rapid throughput, minimum fines,
precise sizing
impaCt mills fine and ultra-fine particle reduction and ClassifYing • Advanced helical rotor design with
de-agglomeration, as well as intensive
(pin mills) inline blending applications Cutters interconnected parallelogram cutters and
• Design efficiency produces high replaceable tungsten carbide, tool steel
throughput rates per hp/kw with or hardened stainless steel inserts
minimal heat transfer • 10 to 72 in. (25.4 to 182.9 cm) wide
• Disc diameters from 8 to 34 in. housings, with magnum sizes also
(20.3 to 86.4 cm) available
• 15 hp (11.2 kw) direct drive to 100+ hp • 5 to 75 hp (3.7 to 55.9 kw) gear-reduced
(74.6+ kw) V-belt drives or belt drives
• Typical applications: sugars, salts, starches, • Typical applications: ceramics, chemicals,
trona, friable powders, sodium bicarbonate, paper, fiberglass, wood, unsintered
spices, vitamin powders, grains powder metals, trim stock, herbs, spices
De-Clumper™ • Reduces agglomerates and compacted attritiOn • Rotating powered disc mill for precise
materials. Precise particle sizing
lump BreaKers • Low-profile allows inline or stand-alone mills medium- to fine-grinding of both friable
and non-friable materials
applications • Shaft-mounted grinding plates with
• Models with 1 to 4 rotors in sizes from adjustable, constant spring-pressure
12 x 12 to 48 x 48 in. (30.5 x 30.5 achieves product uniformity within narrow
to 121.9 x 121.9 cm) particle size ranges down to 100 mesh
• Single 3 hp (2.2 kw) drives to 20+ hp • Disc diameters from 12 to 36 in.
(14.9+ kw) dual redundant drives (30.5 to 91.4 cm)
• Typical applications: agglomerated • Belt drives from 20 to 125 hp
sugars, salts, sodium/calcium (14.9 to 93.2 kw)
carbonates, chemicals, fertilizers, • Typical applications: powder metals,
flakes, cement powders, grains, regrind, scrap products and
hygroscopic products chemicals, including wet milling
rOtarY Knife • Cutter/cracker with 5 rotating blades HammerHeaD™ • Industrial-duty hammer mill for coarse and
Cutters cutting against 4 stationary blades, Hammer mills fine grinding of fibrous and friable materials
propelling on-size particles through a
at high rates with controllable sizing
perforated screen • Replaceable hammers impact at high
• Extensive selection of screen sizes speeds. 270° screens maximize area/
delivers controlled end product sizes capacity and are easily removed through
with minimum fines a hinged door
• Sizes from 24 to 48 in. (61.0 to • 14.5 and 18 in. (36.8 and 45.7 cm)
121.9 cm) wide housings
• 20 to 50 hp (14.9 to 37.3 kw) belt • 20 to 150 hp (14.9 to 111.9 kw)
drives direct drives
• Typical applications: spices, roots, corn • Typical applications: plastics, chemicals,
(cutting/cracking), grains, other food wood products, fertilizers, fibrous
products and potpourri products, grain/corn, spices
CX HeavY DutY • Single-rotor, high-torque cutter/hog BulK material • Twin-shaft, ultra-heavy-duty shredder
Cutters with gravity feed or pneumatic ram sHreDDers with heat treated, resharpenable
shredder heads reduces volume of
for primary size reduction of larger,
bulky materials diverse materials
• Solid rotor mass with replaceable tips • Low speed, high torque shredding with
in a variety of configurations positive feeding and self-clearing action
• Widths from 12 to 36 in. (30.5 to • 6 to 12 in. (15.2 to 30.5 cm) diameter
91.4 cm) shredder heads, 28 to 60 in. (71.1 to
• Gear reduced or belt drives to 75 hp 152.4 cm) chamber lengths
(55.9 kw) • Gear-reduced single 20 hp (14.9 kw)
• Typical applications: EPDM/synthetic to 100 hp (74.6 kw) dual drives
rubber, wood, chemicals, plastics, • Typical applications: pallets, fiber
detergent blocks, scrap products, drums, computer parts, plastics, rubber
fertilizer, resins, chocolate blocks compounds, cardboard, regrind
FOR OBjECTIvE ADvICE, ASK ThE ONLy munsOn maCHinerY CO., inC.
MANUFACTURER OF ALL EIGhT TyPES 1-800-944-6644
1-315-797-0090
infO@munsOnmaCHinerY.COm FF-0998
©2018 Munson Machinery Co., Inc. MUNSON® is a registered trademark of Munson Machinery Co., Inc. www.munsOnmaCHinerY.COm
