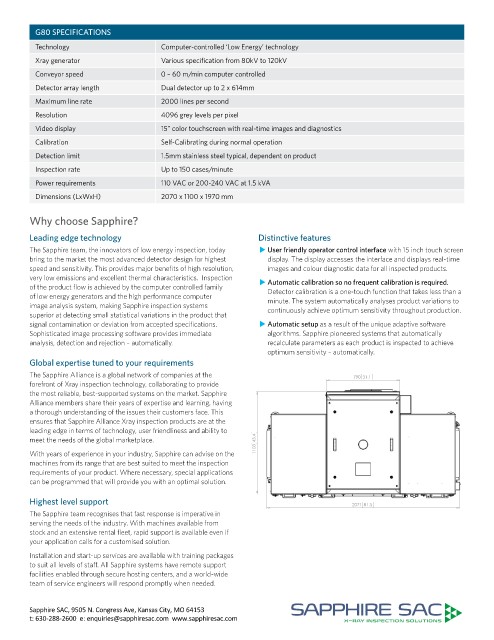

G80 SPECIFICATIONS

Technology Computer-controlled ‘Low Energy’ technology
Xray generator Various specification from 80kV to 120kV
Conveyor speed 0 – 60 m/min computer controlled
Detector array length Dual detector up to 2 x 614mm
Maximum line rate 2000 lines per second
Resolution 4096 grey levels per pixel
Video display 15” color touchscreen with real-time images and diagnostics
Calibration Self-Calibrating during normal operation
Detection limit 1.5mm stainless steel typical, dependent on product

Inspection rate Up to 150 cases/minute
Power requirements 110 VAC or 200-240 VAC at 1.5 kVA
Dimensions (LxWxH) 2070 x 1100 x 1970 mm

Why choose Sapphire?

Leading edge technology Distinctive features
The Sapphire team, the innovators of low energy inspection, today X XUser friendly operator control interface with 15 inch touch screen
bring to the market the most advanced detector design for highest display. The display accesses the interface and displays real-time
speed and sensitivity. This provides major benefits of high resolution, images and colour diagnostic data for all inspected products.
very low emissions and excellent thermal characteristics. Inspection X Xutomatic calibration so no frequent calibration is required.
A
of the product flow is achieved by the computer controlled family
of low energy generators and the high performance computer Detector calibration is a one-touch function that takes less than a
minute. The system automatically analyses product variations to
image analysis system, making Sapphire inspection systems
superior at detecting small statistical variations in the product that continuously achieve optimum sensitivity throughout production.
A
signal contamination or deviation from accepted specifications. X Xutomatic setup as a result of the unique adaptive software
Sophisticated image processing software provides immediate algorithms. Sapphire pioneered systems that automatically
analysis, detection and rejection – automatically. recalculate parameters as each product is inspected to achieve
optimum sensitivity – automatically.
Global expertise tuned to your requirements
The Sapphire Alliance is a global network of companies at the 790 31.1
forefront of Xray inspection technology, collaborating to provide
the most reliable, best-supported systems on the market. Sapphire
Alliance members share their years of expertise and learning, having
a thorough understanding of the issues their customers face. This
ensures that Sapphire Alliance Xray inspection products are at the
leading edge in terms of technology, user friendliness and ability to
meet the needs of the global marketplace. 43.4

With years of experience in your industry, Sapphire can advise on the 1103
machines from its range that are best suited to meet the inspection
requirements of your product. Where necessary, special applications
can be programmed that will provide you with an optimal solution.

Highest level support 2071 81.5
The Sapphire team recognises that fast response is imperative in
serving the needs of the industry. With machines available from
stock and an extensive rental fleet, rapid support is available even if
your application calls for a customised solution. File Location : G:\My Documents\SolidWorks From Server\G80\6346 - G80 Xray 2000 Long R to L\6346 - G80 Xray 2000 Long R to L\6346 - G80 Xray R to L 2000 Long
ISSUE AMENDMENTS DATE DIMENSIONS ARE IN MILLIMETERS NAME DATE Cheyney Design & Development Ltd
TOLERANCES: 0.25 DRAWN New Cambridge House, Litlington,
GENERAL :
Installation and start-up services are available with training packages MACHINING : 0.25 0.80 CHECKED Herts, SG8 0SS, UK.
Royston
FABRICATION :
ENG APPR.
BEND/ANGULAR :
0.25
AS DRAWN OPP HAND MFG APPR. TITLE
to suit all levels of staff. All Sapphire systems have remote support MATERIAL -- -- Q.A. COMMENTS: 6346 - G80 Xray R to L 2000 Long
facilities enabled through secure hosting centers, and a world-wide THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF FINISH SIZE SIZE A3 DWG. NO. REV. REV.
DWG. NO.
SAPPHIRE INSPECTION SYSTEMS LTD. ANY REPRODUCTION IN PART OR AS A
WHOLE WITHOUT THE WRITTEN PERMISSION OF SAPPHIRE INSPECTION SYSTEMS
LTD IS PROHIBITED. DO NOT SCALE DRAWINGS SCALE: 1:10 MASS: g SHEET 1 OF 1
SHEET 1 OF 1
team of service engineers will respond promptly when needed.
Sapphire SAC, 9505 N. Congress Ave, Kansas City, MO 64153
t: 630-288-2600 e: enquiries@sapphiresac.com www.sapphiresac.com
