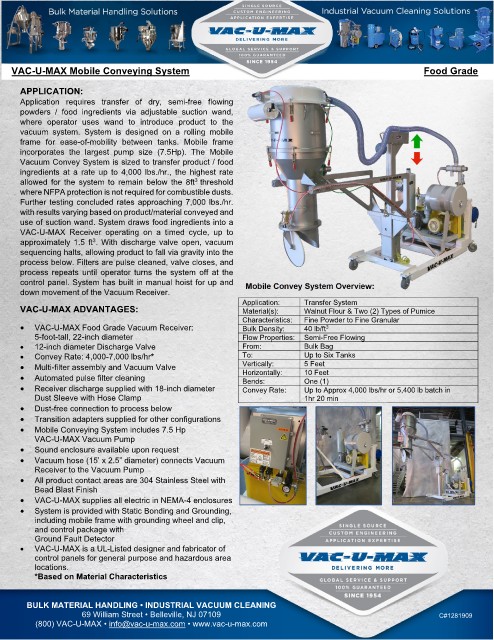

VAC-U-MAX Mobile Conveying System Food Grade

APPLICATION:
Application requires transfer of dry, semi-free flowing
powders / food ingredients via adjustable suction wand,
where operator uses wand to introduce product to the
vacuum system. System is designed on a rolling mobile
frame for ease-of-mobility between tanks. Mobile frame
incorporates the largest pump size (7.5Hp). The Mobile
Vacuum Convey System is sized to transfer product / food
ingredients at a rate up to 4,000 lbs./hr., the highest rate
3
allowed for the system to remain below the 8ft threshold
where NFPA protection is not required for combustible dusts.
Further testing concluded rates approaching 7,000 lbs./hr.
with results varying based on product/material conveyed and
use of suction wand. System draws food ingredients into a
VAC-U-MAX Receiver operating on a timed cycle, up to
3
approximately 1.5 ft . With discharge valve open, vacuum
sequencing halts, allowing product to fall via gravity into the
process below. Filters are pulse cleaned, valve closes, and
process repeats until operator turns the system off at the
control panel. System has built in manual hoist for up and Mobile Convey System Overview:
down movement of the Vacuum Receiver.
Application: Transfer System
VAC-U-MAX ADVANTAGES: Material(s): Walnut Flour & Two (2) Types of Pumice
Characteristics: Fine Powder to Fine Granular
 VAC-U-MAX Food Grade Vacuum Receiver: Bulk Density: 40 lb/ft
3
5-foot-tall, 22-inch diameter Flow Properties: Semi-Free Flowing
 12-inch diameter Discharge Valve From: Bulk Bag
 Convey Rate: 4,000-7,000 lbs/hr* To: Up to Six Tanks
 Multi-filter assembly and Vacuum Valve Vertically: 5 Feet
 Automated pulse filter cleaning Horizontally: 10 Feet
Bends:
One (1)
 Receiver discharge supplied with 18-inch diameter Convey Rate: Up to Approx 4,000 lbs/hr or 5,400 lb batch in
Dust Sleeve with Hose Clamp 1hr 20 min
 Dust-free connection to process below
 Transition adapters supplied for other configurations
 Mobile Conveying System includes 7.5 Hp
VAC-U-MAX Vacuum Pump
 Sound enclosure available upon request
 Vacuum hose (15’ x 2.5” diameter) connects Vacuum
Receiver to the Vacuum Pump
 All product contact areas are 304 Stainless Steel with
Bead Blast Finish
 VAC-U-MAX supplies all electric in NEMA-4 enclosures
 System is provided with Static Bonding and Grounding,
including mobile frame with grounding wheel and clip,
and control package with
Ground Fault Detector
 VAC-U-MAX is a UL-Listed designer and fabricator of
control panels for general purpose and hazardous area
locations.
*Based on Material Characteristics
