P. 3033

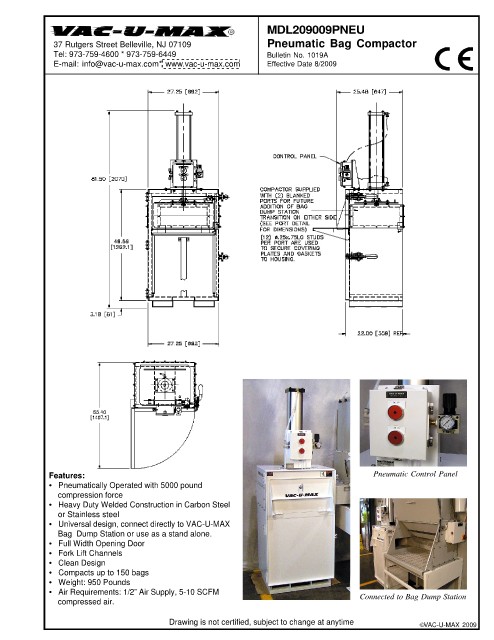

MDL209009PNEU
37 Rutgers Street Belleville, NJ 07109 Pneumatic Bag Compactor
Tel: 973-759-4600 * 973-759-6449 Bulletin No. 1019A
E-mail: info@vac-u-max.com* www.vac-u-max.com Effective Date 8/2009
Features: Pneumatic Control Panel
• Pneumatically Operated with 5000 pound
compression force
• Heavy Duty Welded Construction in Carbon Steel
or Stainless steel
• Universal design, connect directly to VAC-U-MAX
Bag Dump Station or use as a stand alone.
• Full Width Opening Door
• Fork Lift Channels
• Clean Design
• Compacts up to 150 bags
• Weight: 950 Pounds
• Air Requirements: 1/2” Air Supply, 5-10 SCFM Connected to Bag Dump Station
compressed air.
Drawing is not certified, subject to change at anytime VAC-U-MAX 2009
