VAC-U-MAX Bag Dump Stations with integral
Dust Collectors features the following:
• Filters hook and snap in place and are serviced
from the clean side.
• Dual Pulse filter cleaning
• Door interlock switch actuates dust collector fan
when door is opened.
• Large access door on dust collector is easily
lifted off when clamps are loosened

Discharge of the VAC-U-MAX Bag Dump
Station can be equipped with:
• Flanged outlet to mate to existing equipment
for gravity feed into process
• VAC-U-MAX Pick Up Adapter (as shown)
with air control slide and intake filter to
introduce material into a VAC-U-MAX
Pneumatic convey system
• VAC-U-MAX Chsiel Bottom Screw Dicharger,
with or without FLEXWALLS.
• Rotary Airlock Valve
• Live Bottom Discharger

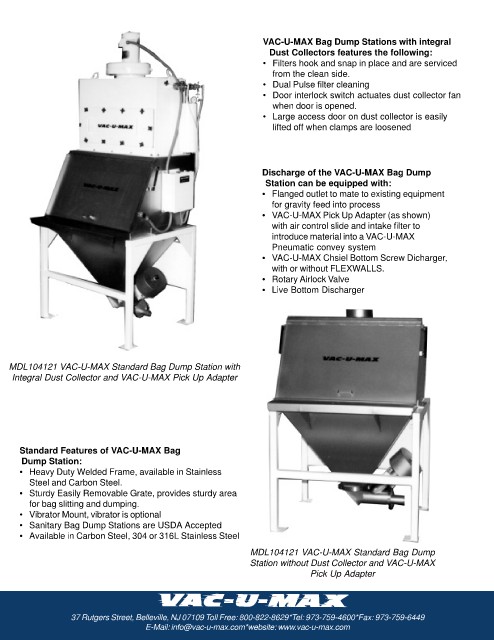

MDL104121 VAC-U-MAX Standard Bag Dump Station with
Integral Dust Collector and VAC-U-MAX Pick Up Adapter

Standard Features of VAC-U-MAX Bag
Dump Station:
• Heavy Duty Welded Frame, available in Stainless
Steel and Carbon Steel.
• Sturdy Easily Removable Grate, provides sturdy area
for bag slitting and dumping.
• Vibrator Mount, vibrator is optional
• Sanitary Bag Dump Stations are USDA Accepted
• Available in Carbon Steel, 304 or 316L Stainless Steel

MDL104121 VAC-U-MAX Standard Bag Dump
Station without Dust Collector and VAC-U-MAX
Pick Up Adapter
