V A C -U -M A X C a ps u le C o n v e y o r
Pneumatic Conveying Division D o c . N o . R e v
37 Rutgers Street Belleville, NJ 07109
R e f N o . Z 6 7 9 9 0 /0 1 A p p B y D S P
Tel: 973-759-4600 * 973-759-6449

E-mail: info@vac-u-max.com* www.vac-u-max.com O rig D a te 1 /2 4 /0 7 E ff D a te 1 /2 4 /0 7
M a d e F ro m Z B 5 2 9 5 1 .0 0 1

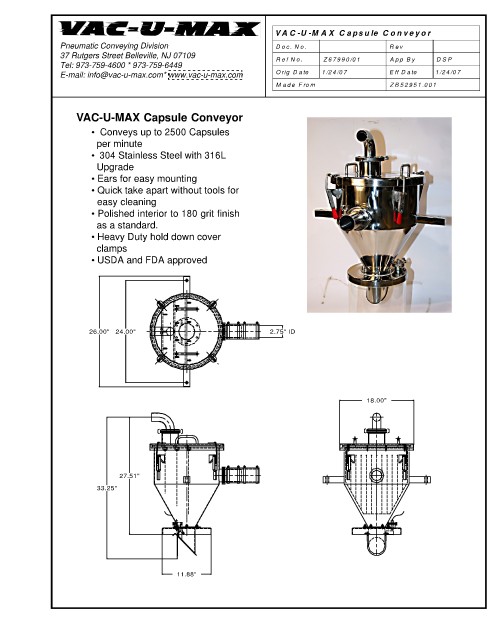

VAC-U-MAX Capsule Conveyor
Conveys up to 2500 Capsules
per minute
304 Stainless Steel with 316L
Upgrade
Ears for easy mounting
Quick take apart without tools for
easy cleaning
Polished interior to 180 grit finish
as a standard.
Heavy Duty hold down cover
clamps
USDA and FDA approved

26.00" 24.00" 2.75" ID

18.00"

27.51"
33.25"

11.88"
