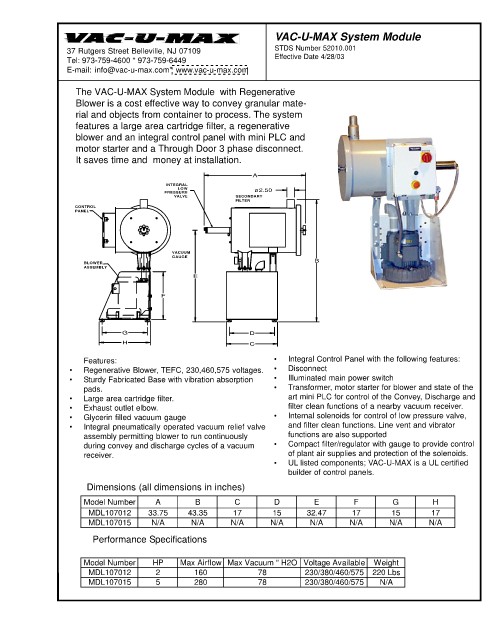

VAC-U-MAX System Module
37 Rutgers Street Belleville, NJ 07109 STDS Number 52010.001
Effective Date 4/28/03
Tel: 973-759-4600 * 973-759-6449
E-mail: info@vac-u-max.com* www.vac-u-max.com

The VAC-U-MAX System Module with Regenerative
Blower is a cost effective way to convey granular mate-
rial and objects from container to process. The system
features a large area cartridge filter, a regenerative
blower and an integral control panel with mini PLC and
motor starter and a Through Door 3 phase disconnect.
It saves time and money at installation.

A
INTEGRAL
LOW ø2.50
PRESSURE
VALVE SECONDARY
FILTER
CONTROL
PANEL

VACUUM
GAUGE
B
BLOWER
ASSEMBLY
E
F

G D
H C
Features: Integral Control Panel with the following features:
Regenerative Blower, TEFC, 230,460,575 voltages. Disconnect
Sturdy Fabricated Base with vibration absorption Illuminated main power switch
pads. Transformer, motor starter for blower and state of the
Large area cartridge filter. art mini PLC for control of the Convey, Discharge and
Exhaust outlet elbow. filter clean functions of a nearby vacuum receiver.
Glycerin filled vacuum gauge Internal solenoids for control of low pressure valve,
Integral pneumatically operated vacuum relief valve and filter clean functions. Line vent and vibrator
assembly permitting blower to run continuously functions are also supported
during convey and discharge cycles of a vacuum Compact filter/regulator with gauge to provide control
receiver. of plant air supplies and protection of the solenoids.
UL listed components; VAC-U-MAX is a UL certified
builder of control panels.
Dimensions (all dimensions in inches)
Model Number A B C D E F G H
MDL107012 33.75 43.35 17 15 32.47 17 15 17
MDL107015 N/A N/A N/A N/A N/A N/A N/A N/A

Performance Specifications

Model Number HP Max Airflow Max Vacuum " H2O Voltage Available Weight
MDL107012 2 160 78 230/380/460/575 220 Lbs
MDL107015 5 280 78 230/380/460/575 N/A
