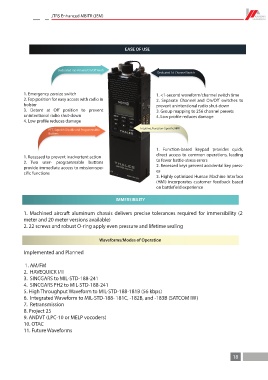

JTRS Enhanced MBITR (JEM)

EASE OF USE

Dedicated Top Volume/On/O Knob
Dedicated 16-Channel Switch

1. Emergency zeroize switch 1. <1-second waveform/channel switch time
2. Top position for easy access with radio in 2. Separate Channel and On/O switches to
holster prevent unintentional radio shut-down
3. Detent at O position to prevent 3. Group mapping to 256 channel presets
unintentional radio shut-down 4. Low pro le reduces damage
4. Low pro le reduces damage
PTT, Squelch Disable and Programmable Intuitive, Function-Speci c HMI
Buttons

1. Function-based keypad provides quick,

1. Recessed to prevent inadvertent action direct access to common operations, leading
2. Two user- programmable buttons to fewer battle-stress errors
provide immediate access to mission-spe- 2. Recessed keys prevent accidental key press-
ci c functions es
3. Highly optimized Human Machine Interface
(HMI) incorporates customer feedback based
on battle eld experience

IMMERSIBILITY

1. Machined aircraft aluminum chassis delivers precise tolerances required for immersibility (2
meter and 20 meter versions available)
2. 22 screws and robust O-ring apply even pressure and lifetime sealing

Waveforms/Modes of Operation

Implemented and Planned

1. AM/FM
2. HAVEQUICK I/II
3. SINCGARS to MIL-STD-188-241
4. SINCGARS FH2 to MIL-STD-188-241
5. High Throughput Waveform to MIL-STD-188-181B (56 kbps)
6. Integrated Waveform to MIL-STD-188- 181C, -182B, and -183B (SATCOM IW)
7. Retransmission
8. Project 25
9. ANDVT (LPC-10 or MELP vocoders)
10. OTAC
11. Future Waveforms
