Dismounted Systems/Fixed Site

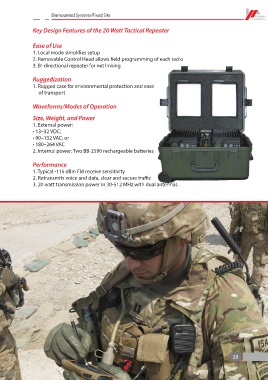

Key Design Features of the 20 Watt Tactical Repeater
Ease of Use
1. Local mode simpli es setup
2. Removable Control Head allows eld programming of each radio
3. Bi-directional repeater for net linking
Ruggedization
1. Rugged case for environmental protection and ease
of transport
Waveforms/Modes of Operation
Size, Weight, and Power
1. External power:
• 13–32 VDC;
• 90–132 VAC; or
• 180–264 VAC
2. Internal power: Two BB-2590 rechargeable batteries
Performance
1. Typical -115 dBm FM receive sensitivity
2. Retransmits voice and data, clear and secure tra c
3. 20 watt transmission power in 30-512 MHz with dual antennas.
