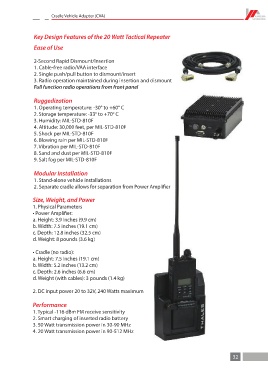

Cradle Vehicle Adapter (CVA)

Key Design Features of the 20 Watt Tactical Repeater

Ease of Use

2-Second Rapid Dismount/Insertion
1. Cable-free radio/VAA interface
2. Single push/pull button to dismount/insert
3. Radio operation maintained during insertion and dismount
Full function radio operations from front panel

Ruggedization
1. Operating temperature: -30° to +60° C
2. Storage temperature: -33° to +70° C
3. Humidity: MIL-STD-810F
4. Altitude: 30,000 feet, per MIL-STD-810F
5. Shock per MIL-STD-810F
6. Blowing rain per MIL-STD-810F
7. Vibration per MIL-STD-810F
8. Sand and dust per MIL-STD-810F
9. Salt fog per MIL-STD-810F

Modular Installation
1. Stand-alone vehicle installations
2. Separate cradle allows for separation from Power Ampli er

Size, Weight, and Power
1. Physical Parameters
• Power Amplifier:
a. Height: 3.9 inches (9.9 cm)
b. Width: 7.5 inches (19.1 cm)
c. Depth: 12.8 inches (32.5 cm)
d. Weight: 8 pounds (3.6 kg)

• Cradle (no radio):
a. Height: 7.5 inches (19.1 cm)
b. Width: 5.2 inches (13.2 cm)
c. Depth: 2.6 inches (6.6 cm)
d. Weight (with cables): 3 pounds (1.4 kg)

2. DC input power 20 to 32V, 240 Watts maximum

Performance
1. Typical -116 dBm FM receive sensitivity
2. Smart charging of inserted radio battery
3. 50 Watt transmission power in 30-90 MHz
4. 20 Watt transmission power in 90-512 MHz
