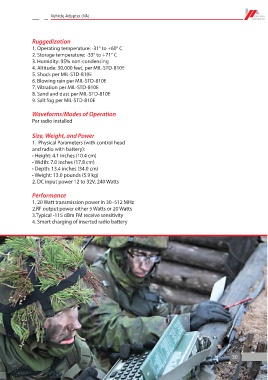

Vehicle Adapter (VA)

Ruggedization
1. Operating temperature: -31° to +60° C
2. Storage temperature: -33° to +71° C
3. Humidity: 95% non-condensing
4. Altitude: 30,000 feet, per MIL-STD-810E
5. Shock per MIL-STD-810E
6. Blowing rain per MIL-STD-810E
7. Vibration per MIL-STD-810E
8. Sand and dust per MIL-STD-810E
9. Salt fog per MIL-STD-810E

Waveforms/Modes of Operation
Per radio installed

Size, Weight, and Power
1. Physical Parameters (with control head
and radio with battery):
• Height: 4.1 inches (10.4 cm)
• Width: 7.0 inches (17.8 cm)
• Depth: 13.4 inches (34.0 cm)
• Weight: 13.0 pounds (5.9 kg)
2. DC input power 12 to 32V, 240 Watts

Performance
1. 20 Watt transmission power in 30–512 MHz
2.RF output power either 5 Watts or 20 Watts
3.Typical -115 dBm FM receive sensitivity
4. Smart charging of inserted radio battery
