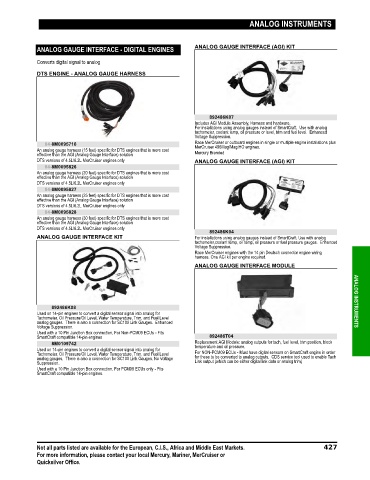

ANALOG INSTRUMENTS

ANALOG GAUGE INTERFACE - DIGITAL ENGINES ANALOG GAUGE INTERFACE (AGI) KIT

Converts digital signal to analog

DTS ENGINE - ANALOG GAUGE HARNESS

892486K07
Includes AGI Module Assembly, Harness and hardware.
For installations using analog gauges instead of SmartCraft. Use with analog
tachometer, coolant temp, oil pressure or level, trim and fuel level. Enhanced
Voltage Suppression.
84-8M0095716 Race MerCruiser or outboard engines in single or multiple engine installations plus
An analog gauge harness (15 feet) specific for DTS engines that is more cost MerCruiser 496Mag/Mag HO engines.
Mercury Branded
effective than the AGI (Analog Gauge Interface) solution
DTS versions of 4.5L/6.2L MerCruiser engines only ANALOG GAUGE INTERFACE (AGI) KIT
84-8M0095826
An analog gauge harness (20 feet) specific for DTS engines that is more cost
effective than the AGI (Analog Gauge Interface) solution
DTS versions of 4.5L/6.2L MerCruiser engines only
84-8M0095827
An analog gauge harness (25 feet) specific for DTS engines that is more cost
effective than the AGI (Analog Gauge Interface) solution
DTS versions of 4.5L/6.2L MerCruiser engines only
84-8M0095828
An analog gauge harness (30 feet) specific for DTS engines that is more cost
effective than the AGI (Analog Gauge Interface) solution
DTS versions of 4.5L/6.2L MerCruiser engines only
892486K04
ANALOG GAUGE INTERFACE KIT For installations using analog gauges instead of SmartCraft. Use with analog
tachometer,coolant temp, oil temp, oil pressure or fuel pressure gauges. Enhanced
Voltage Suppression.
Race MerCruiser engines with the 14 pin Deutsch connector engine wiring
harness. One AGI kit per engine required.
ANALOG GAUGE INTERFACE MODULE

892486K08 ANALOG INSTRUMENTS
Used on 14‑pin engines to convert a digital sensor signal into analog for
Tachometer, Oil Pressure/Oil Level, Water Temperature, Trim, and Fuel Level
analog gauges. There is also a connection for SC100 Link Gauges. Enhanced
Voltage Suppression.
Used with a 10 Pin Junction Box connection, For Non‑PCM09 ECUs ‑ Fits
SmartCraft compatible 14‑pin engines 892486T04
8M0109742 Replacement AGI Module: analog outputs for tach, fuel level, trim position, block
temperature and oil pressure.
Used on 14‑pin engines to convert a digital sensor signal into analog for
Tachometer, Oil Pressure/Oil Level, Water Temperature, Trim, and Fuel Level For NON‑PCM09 ECUs ‑ Must have digital sensors on SmartCraft engine in order
analog gauges. There is also a connection for SC100 Link Gauges. No Voltage for these to be converted to analog outputs. CDS service tool used to enable Tach
Suppression. Link output (which can be either digital link data or analog trim)
Used with a 10 Pin Junction Box connection. For PCM09 ECUs only ‑ Fits
SmartCraft compatible 14‑pin engines.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 427
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
