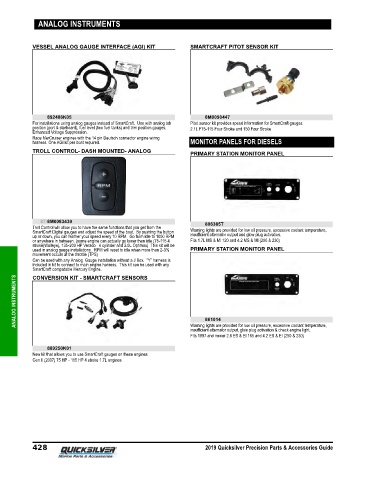

Page 435 - Quicksilver Accesories Guide 2019

ANALOG INSTRUMENTS

VESSEL ANALOG GAUGE INTERFACE (AGI) KIT SMARTCRAFT PITOT SENSOR KIT

892486K05 8M0090447
For installations using analog gauges instead of SmartCraft. Use with analog tab Pitot sensor kit provides speed information for SmartCraft gauges.
position (port & starboard), fuel level (two fuel tanks) and trim position gauges. 2.1L F75‑115 Four Stroke and 150 Four Stroke
Enhanced Voltage Suppression.
Race MerCruiser engines with the 14 pin Deutsch connector engine wiring
harness. One AGI kit per boat required. MONITOR PANELS FOR DIESELS
TROLL CONTROL- DASH MOUNTED- ANALOG
PRIMARY STATION MONITOR PANEL

87-8M0083439 806385T
Troll Control will allow you to have the same functions that you get from the
SmartCraft Digital gauges and adjust the speed of the boat. By pushing the button Warning lights are provided for low oil pressure, excessive coolant temperature,
up or down, you can feather your speed every 10 RPM. Go from idle to 1000 RPM insufficient alternator output and glow plug activation.
or anywhere in between. (some engine can actually go lower than idle (75‑115 4 Fits 1.7L MS & MI 120 and 4.2 MS & MI (200 & 230)
stroke(Walleye), 135‑200 HP Verado 4 cylinder and 3.0L Optimax) This kit will be
used in analog gauge installations. RPM will reset to idle when more than 2‑3% PRIMARY STATION MONITOR PANEL
movement occurs at the throttle (TPS)
Can be used with any Analog Gauge installation without a J Box. "Y" harness is
included in kit to connect to main engine hanress. This kit can be used with any
SmartCraft compatable Mercury Engine.
ANALOG INSTRUMENTS
CONVERSION KIT - SMARTCRAFT SENSORS

861014
Warning lights are provided for low oil pressure, excessive coolant temperature,
insufficient alternator output, glow plug activation & check engine light.
Fits 1997 and newer 2.8 ES & EI 165 and 4.2 ES & EI (250 & 230)
889250K01
New kit that allows you to use SmartCraft gauges on these engines
Gen II (2007) 75 HP ‑ 115 HP 4 stroke 1.7L engines

428 2019 Quicksilver Precision Parts & Accessories Guide
