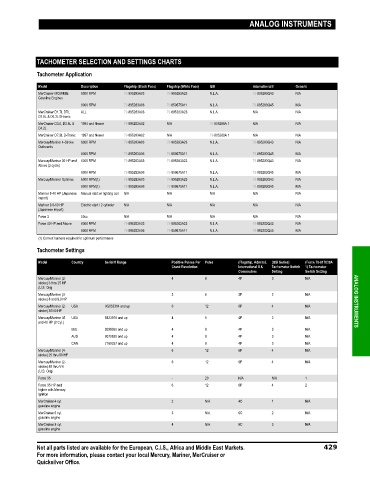

Page 436 - Quicksilver Accesories Guide 2019

ANALOG INSTRUMENTS

TACHOMETER SELECTION AND SETTINGS CHARTS

Tachometer Application
Model Description Flagship (Black Face) Flagship (White Face) QSI International II Generic
MerCruiser MCM/MIE 6000 RPM 79-895283A03 79-895283A23 N.L.A. 79-895283Q43 N/A
Gasoline Engines
8000 RPM 79-895283A06 79-859675A11 N.L.A. 79-895283Q45 N/A
MerCruiser D1.7L DTI, ALL 79-895283A03 79-895283A23 N.L.A. N/A N/A
D2.8L & D4.2L D-tronic
MerCruiser D3.0, D3.6L & 1994 and Newer 79-895283A02 N/A 79-805289A 1 N/A N/A
D4.2L
MerCruiser D7.3L D-Tronic 1997 and Newer 79-895283A02 N/A 79-805289A 1 N/A N/A
Mercury/Mariner 4-Stroke 6000 RPM 79-895283A03 79-895283A23 N.L.A. 79-895283Q43 N/A
Outboards
8000 RPM 79-895283A06 79-859675A11 N.L.A. 79-895283Q45 N/A
Mercury/Mariner 20 HP and 6000 RPM 79-895283A03 79-895283A23 N.L.A. 79-895283Q43 N/A
Above (2 cycle)
8000 RPM 79-895283A06 79-859675A11 N.L.A. 79-895283Q45 N/A
Mercury/Mariner Optimax 6000 RPM(1) 79-895283A03 79-895283A23 N.L.A. 79-895283Q43 N/A
8000 RPM(1) 79-895283A06 79-859675A11 N.L.A. 79-895283Q45 N/A
Mariner 8-40 HP (Japanese Manual start w/ lighting coil N/A N/A N/A N/A N/A
import)
Mariner 9.9-60 HP Electric start / 2 cylinder N/A N/A N/A N/A N/A
(Japanese import)
Force 3 50cc N/A N/A N/A N/A N/A
Force 40 HP and Above 6000 RPM 79-895283A03 79-895283A23 N.L.A. 79-895283Q43 N/A
8000 RPM 79-895283A06 79-859675A11 N.L.A. 79-895283Q45 N/A
(1) Correct harness required for optimum performance
Tachometer Settings

Model Country Serial # Range Positive Pulses Per Poles (Flagship, Admiral, (QSI Series) (Force 79-817030A
Crank Revolution International II & Tachometer Switch 1) Tachometer
Commodore Setting Switch Setting
Mercury/Mariner (2- 4 8 4P 3 N/A
stroke) 6 thru 25 HP
(U.S. Orig
Mercury/Mariner (4- 3 6 3P 2 N/A
stroke) 8 and 9.9 HP ANALOG INSTRUMENTS
Mercury/Mariner (2- USA 0G053314 and up 6 12 6P 4 N/A
stroke) 30/40 HP
Mercury/Mariner 35 USA 5823918 and up 4 8 4P 3 N/A
and 40 HP (2 Cyl.)
BEL 9298955 and up 4 8 4P 3 N/A
AUS 8070639 and up 4 8 4P 3 N/A
CAN 7169337 and up 4 8 4P 3 N/A
Mercury/Mariner (4- 6 12 6P 4 N/A
stroke) 25 thru 90 HP
Mercury/Mariner (2- 6 12 6P 4 N/A
stroke) 45 thru V-6
(U.S. Origi
Force 35 - 20 N/A N/A 1
Force 35 HP and 6 12 6P 4 2
higher with Mercury
ignition
MerCruiser 4 cyl. 2 N/A 4C 1 N/A
gasoline engine
MerCruiser 6 cyl. 3 N/A 6C 2 N/A
gasoline engine
MerCruiser 8 cyl. 4 N/A 8C 3 N/A
gasoline engine

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 429
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
