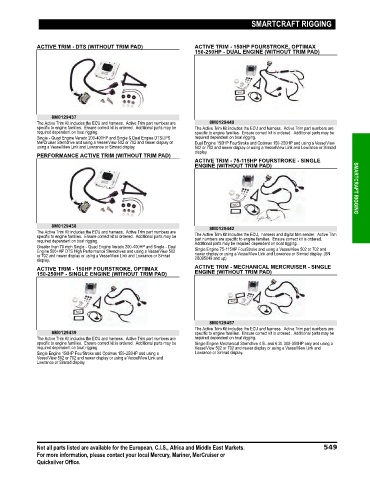

Page 556 - Quicksilver Accesories Guide 2019

SMARTCRAFT RIGGING

ACTIVE TRIM - DTS (WITHOUT TRIM PAD) ACTIVE TRIM - 150HP FOURSTROKE, OPTIMAX
150-250HP - DUAL ENGINE (WITHOUT TRIM PAD)

8M0129437
The Active Trim Kit includes the ECU and harness. Active Trim part numbers are 8M0129440
specific to engine families. Ensure correct kit is ordered. Additional parts may be The Active Trim Kit includes the ECU and harness. Active Trim part numbers are
required dependent on boat rigging. specific to engine families. Ensure correct kit is ordered. Additional parts may be
Single ‑ Quad Engine Verado 200‑400HP and Single & Dual Engine DTS/JPS required dependent on boat rigging.
MerCruiser Sterndrive and using a VesselView 502 or 702 and newer display or Dual Engine 150HP FourStroke and Optimax 150‑250HP and using a VesselView
using a VesselView Link and Lowrance or Simrad display. 502 or 702 and newer display or using a VesselView Link and Lowrance or Simrad
display.
PERFORMANCE ACTIVE TRIM (WITHOUT TRIM PAD)
ACTIVE TRIM - 75-115HP FOURSTROKE - SINGLE
ENGINE (WITHOUT TRIM PAD) SMARTCRAFT RIGGING

8M0129438
8M0129442
The Active Trim Kit includes the ECU and harness. Active Trim part numbers are The Active Trim Kit includes the ECU, harness and digital trim sender. Active Trim
specific to engine families. Ensure correct kit is ordered. Additional parts may be
required dependent on boat rigging. part numbers are specific to engine families. Ensure correct kit is ordered.
Additional parts may be required dependent on boat rigging.
Greater than 70 mph Single ‑ Quad Engine Verado 200‑400HP and Single ‑ Dual
Engine 500+HP DTS High Performance Sterndrives and using a VesselView 502 Single Engine 75‑115HP FourStroke and using a VesselView 502 or 702 and
or 702 and newer display or using a VesselView Link and Lowrance or Simrad newer display or using a VesselView Link and Lowrance or Simrad display. (SN
display. 2B095049 and up)
ACTIVE TRIM - 150HP FOURSTROKE, OPTIMAX ACTIVE TRIM - MECHANICAL MERCRUISER - SINGLE
150-250HP - SINGLE ENGINE (WITHOUT TRIM PAD) ENGINE (WITHOUT TRIM PAD)

8M0129457
The Active Trim Kit includes the ECU and harness. Active Trim part numbers are
8M0129439 specific to engine families. Ensure correct kit is ordered. Additional parts may be
The Active Trim Kit includes the ECU and harness. Active Trim part numbers are required dependent on boat rigging.
specific to engine families. Ensure correct kit is ordered. Additional parts may be Single Engine Mechanical Sterndrive 4.5L and 6.2L 300‑350HP only and using a
required dependent on boat rigging. VesselView 502 or 702 and newer display or using a VesselView Link and
Single Engine 150HP FourStroke and Optimax 150‑250HP and using a Lowrance or Simrad display.
VesselView 502 or 702 and newer display or using a VesselView Link and
Lowrance or Simrad display.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 549
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
