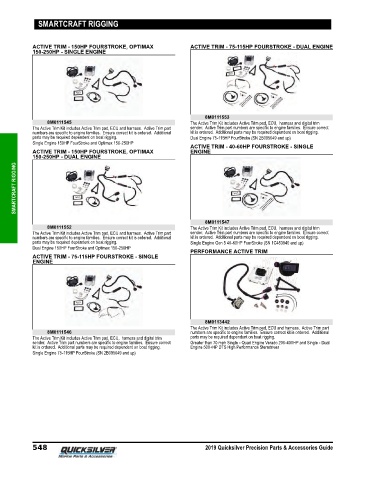

SMARTCRAFT RIGGING

ACTIVE TRIM - 150HP FOURSTROKE, OPTIMAX ACTIVE TRIM - 75-115HP FOURSTROKE - DUAL ENGINE
150-250HP - SINGLE ENGINE

8M0111553
8M0111545 The Active Trim Kit includes Active Trim pad, ECU, harness and digital trim
The Active Trim Kit includes Active Trim pad, ECU and harness. Active Trim part sender. Active Trim part numbers are specific to engine families. Ensure correct
numbers are specific to engine families. Ensure correct kit is ordered. Additional kit is ordered. Additional parts may be required dependent on boat rigging.
parts may be required dependent on boat rigging. Dual Engine 75‑115HP FourStroke (SN 2B095049 and up)
Single Engine 150HP FourStroke and Optimax 150‑250HP
ACTIVE TRIM - 40-60HP FOURSTROKE - SINGLE
ACTIVE TRIM - 150HP FOURSTROKE, OPTIMAX ENGINE
150-250HP - DUAL ENGINE
SMARTCRAFT RIGGING

8M0111547
8M0111552 The Active Trim Kit includes Active Trim pad, ECU, harness and digital trim
The Active Trim Kit includes Active Trim pad, ECU and harness. Active Trim part sender. Active Trim part numbers are specific to engine families. Ensure correct
numbers are specific to engine families. Ensure correct kit is ordered. Additional kit is ordered. Additional parts may be required dependent on boat rigging.
parts may be required dependent on boat rigging. Single Engine Gen 5 40‑60HP FourStroke (SN 1C453940 and up)
Dual Engine 150HP FourStroke and Optimax 150‑250HP
PERFORMANCE ACTIVE TRIM
ACTIVE TRIM - 75-115HP FOURSTROKE - SINGLE
ENGINE

8M0113442
The Active Trim Kit includes Active Trim pad, ECU and harness. Active Trim part
8M0111546 numbers are specific to engine families. Ensure correct kit is ordered. Additional
The Active Trim Kit includes Active Trim pad, ECU, harness and digital trim parts may be required dependent on boat rigging.
sender. Active Trim part numbers are specific to engine families. Ensure correct Greater than 70 mph Single ‑ Quad Engine Verado 200‑400HP and Single ‑ Dual
kit is ordered. Additional parts may be required dependent on boat rigging. Engine 500+HP DTS High Performance Sterndrives
Single Engine 75‑115HP FourStroke (SN 2B095049 and up)

548 2019 Quicksilver Precision Parts & Accessories Guide
