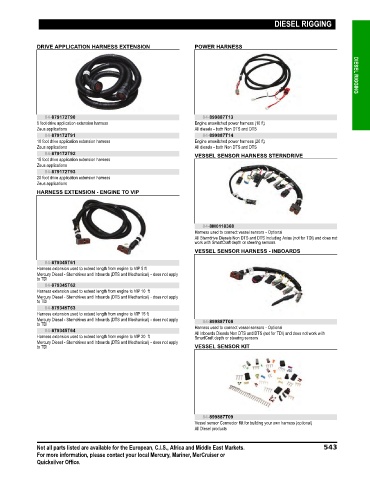

Page 550 - Quicksilver Accesories Guide 2019

DIESEL RIGGING

DRIVE APPLICATION HARNESS EXTENSION POWER HARNESS DIESEL RIGGING

84-879172T90 84-899887T13
5 foot drive application extension harness Engine unswitched power harness (10 ft)
Zeus applications All diesels ‑ both Non DTS and DTS
84-879172T91 84-899887T14
10 foot drive application extension harness Engine unswitched power harness (20 ft)
Zeus applications All diesels ‑ both Non DTS and DTS
84-879172T92 VESSEL SENSOR HARNESS STERNDRIVE
15 foot drive application extension harness
Zeus applications
84-879172T93
20 foot drive application extension harness
Zeus applications
HARNESS EXTENSION - ENGINE TO VIP

84-8M0118368
Harness used to connect vessel sensors ‑ Optional
All Sterndrive Diesels Non DTS and DTS Including Axius (not for TDI) and does not
work with SmartCraft depth or steering sensors
VESSEL SENSOR HARNESS - INBOARDS

84-879345T61
Harness extension used to extend length from engine to VIP 5 ft
Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply
to TDI
84-879345T62
Harness extension used to extend length from engine to VIP 10 ft
Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply
to TDI
84-879345T63
Harness extension used to extend length from engine to VIP 15 ft
Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply 84-899887T08
to TDI
84-879345T64 Harness used to connect vessel sensors ‑ Optional
All Inboards Diesels Non DTS and DTS (not for TDI) and does not work with
Harness extension used to extend length from engine to VIP 20 ft SmartCraft depth or steering sensors
Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply
to TDI VESSEL SENSOR KIT

84-899887T09
Vessel sensor Connector Kit for building your own harness (optional)
All Diesel products

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 543
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
