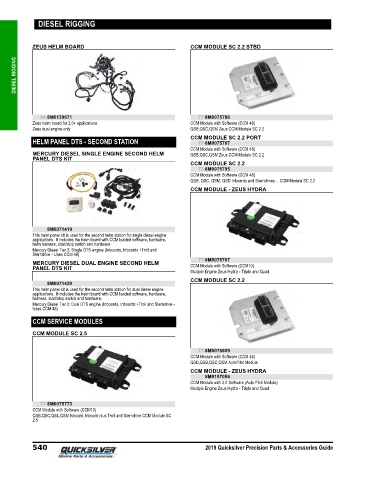

Page 547 - Quicksilver Accesories Guide 2019

DIESEL RIGGING

ZEUS HELM BOARD CCM MODULE SC 2.2 STBD

DIESEL RIGGING

84-8M0139671 77-8M0075786
Zeus helm board for 2.5+ applications CCM Module with Software (CCM 48)
Zeus dual engine only QSB,QSC,QSM Zeus CCM Module SC 2.2
CCM MODULE SC 2.2 PORT
HELM PANEL DTS - SECOND STATION 77-8M0075787
CCM Module with Software (CCM 48)
MERCURY DIESEL SINGLE ENGINE SECOND HELM QSB,QSC,QSM Zeus CCM Module SC 2.2
PANEL DTS KIT
CCM MODULE SC 2.2
77-8M0075795
CCM Module with Software (CCM 48)
QSB, QSC, QSM, QSD Inboards and Sterndrives ‑ CCM Module SC 2.2
CCM MODULE - ZEUS HYDRA

8M0071419
This helm panel kit is used for the second helm station for single diesel engine
applications. It includes the helm board with CCM loaded software, hardware,
helm harness, start/stop switch and hardware
Mercury Diesel Tier 2: Single DTS engine (Inboards, Inboards +Troll and
Sterndrive ‑ Uses CCM 48)
77-8M0075767
MERCURY DIESEL DUAL ENGINE SECOND HELM
PANEL DTS KIT CCM Module with Software (CCM10)
Multiple Engine Zeus Hydra ‑ Triple and Quad
CCM MODULE SC 2.2
8M0071420
This helm panel kit is used for the second helm station for dual diesel engine
applications. It includes the helm board with CCM loaded software, hardware,
harness, start/stop switch and hardware.
Mercury Diesel Tier 2: Dual DTS engine (Inboards, Inboards +Troll and Sterndrive ‑
Uses CCM 48)

CCM SERVICE MODULES
CCM MODULE SC 2.5

77-8M0075809
CCM Module with Software (CCM 48)
QSD,QSB,QSC,QSM AutoPilot Module
CCM MODULE - ZEUS HYDRA
8M0107056
CCM Module with 3.0 Software (Auto Pilot Module)
Multiple Engine Zeus Hydra ‑ Triple and Quad

77-8M0075773
CCM Module with Software (CCM10)
QSB,QSC,QSL,QSM Inboard, Inboard plus Troll and Sterndrive CCM Module SC
2.5

540 2019 Quicksilver Precision Parts & Accessories Guide
