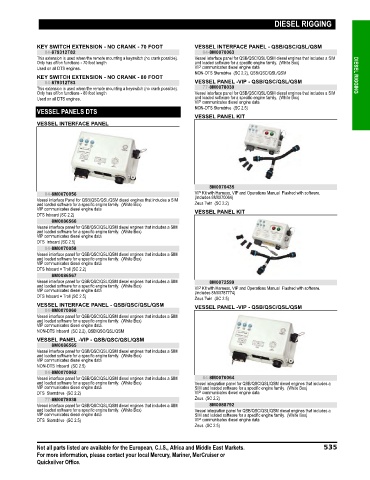

Page 542 - Quicksilver Accesories Guide 2019

DIESEL RIGGING

KEY SWITCH EXTENSION - NO CRANK - 70 FOOT VESSEL INTERFACE PANEL - QSB/QSC/QSL/QSM
84-879312T82 84-8M0070063
This extension is used when the remote mounting a keyswitch (no crank possible). Vessel interface panel for QSB/QSC/QSL/QSM diesel engines that includes a SIM
Only has off/on functions ‑ 70 foot length and loaded software for a specific engine family. (White Box)
Used on all DTS engines. VIP communicates diesel engine data
NON‑DTS Sterndrive (SC 2.2), QSB/QSC/QSL/QSM
KEY SWITCH EXTENSION - NO CRANK - 80 FOOT DIESEL RIGGING
84-879312T83 VESSEL PANEL -VIP - QSB/QSC/QSL/QSM
This extension is used when the remote mounting a keyswitch (no crank possible). 77-8M0078039
Only has off/on functions ‑ 80 foot length Vessel interface panel for QSB/QSC/QSL/QSM diesel engines that includes a SIM
Used on all DTS engines. and loaded software for a specific engine family. (White Box)
VIP communicates diesel engine data
VESSEL PANELS DTS NON‑DTS Sterndrive (SC 2.5)
VESSEL PANEL KIT
VESSEL INTERFACE PANEL

8M0070435
84-8M0070056 VIP Kit with Harness, VIP and Operations Manual Flashed with software.
Vessel interface Panel for QSB/QSC/QSL/QSM diesel engines that includes a SIM (Includes 8M0070064)
and loaded software for a specific engine family. (White Box) Zeus Twin (SC 2.2)
VIP communicates diesel engine data VESSEL PANEL KIT
DTS Inboard (SC 2.2)
8M0086566
Vessel interface panel for QSB/QSC/QSL/QSM diesel engines that includes a SIM
and loaded software for a specific engine family. (White Box)
VIP communicates diesel engine data
DTS Inboard (SC 2.5)
84-8M0070058
Vessel interface panel for QSB/QSC/QSL/QSM diesel engines that includes a SIM
and loaded software for a specific engine family. (White Box)
VIP communicates diesel engine data
DTS Inboard + Troll (SC 2.2)
8M0086567
Vessel interface panel for QSB/QSC/QSL/QSM diesel engines that includes a SIM 8M0072599
and loaded software for a specific engine family. (White Box) VIP Kit with Harness, VIP and Operations Manual Flashed with software.
VIP communicates diesel engine data (Includes 8M00787774)
DTS Inboard + Troll (SC 2.5)
Zeus Twin (SC 2.5)
VESSEL INTERFACE PANEL - QSB/QSC/QSL/QSM VESSEL PANEL -VIP - QSB/QSC/QSL/QSM
84-8M0070060
Vessel interface panel for QSB/QSC/QSL/QSM diesel engines that includes a SIM
and loaded software for a specific engine family. (White Box)
VIP communicates diesel engine data.
NON‑DTS Inboard (SC 2.2), QSB/QSC/QSL/QSM
VESSEL PANEL -VIP - QSB/QSC/QSL/QSM
8M0086565
Vessel interface panel for QSB/QSC/QSL/QSM diesel engines that includes a SIM
and loaded software for a specific engine family. (White Box)
VIP communicates diesel engine data
NON‑DTS Inboard (SC 2.5)
84-8M0070062
Vessel interface panel for QSB/QSC/QSL/QSM diesel engines that includes a SIM 84-8M0070064
and loaded software for a specific engine family. (White Box) Vessel integration panel for QSB/QSC/QSL/QSM diesel engines that includes a
VIP communicates diesel engine data SIM and loaded software for a specific engine family. (White Box)
DTS Sterndrive (SC 2.2) VIP communicates diesel engine data
77-8M0078038 Zeus (SC 2.2)
Vessel interface panel for QSB/QSC/QSL/QSM diesel engines that includes a SIM 8M0088792
and loaded software for a specific engine family. (White Box) Vessel integration panel for QSB/QSC/QSL/QSM diesel engines that includes a
VIP communicates diesel engine data SIM and loaded software for a specific engine family. (White Box)
DTS Sterndrive (SC 2.5) VIP communicates diesel engine data
Zeus (SC 2.5)

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 535
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
