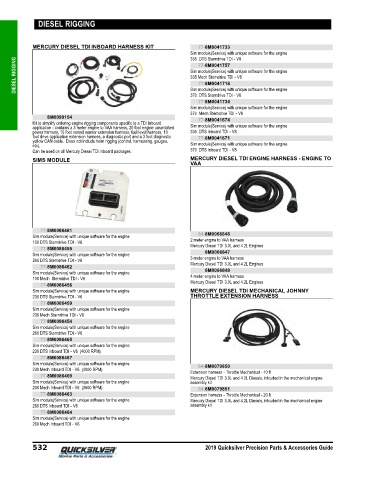

Page 539 - Quicksilver Accesories Guide 2019

DIESEL RIGGING

MERCURY DIESEL TDI INBOARD HARNESS KIT 77-8M0041733
Sim module(Service) with unique software for the engine
335 DTS Sterndrive TDI ‑ V8
DIESEL RIGGING Sim module(Service) with unique software for the engine
77-8M0041757
335 Mech Sterndrive TDI ‑ V8
77-8M0041718
Sim module(Service) with unique software for the engine
370 DTS Sterndrive TDI ‑ V8
77-8M0041734
Sim module(Service) with unique software for the engine
370 Mech Sterndrive TDI ‑ V8
8M0099154 77-8M0041674
Kit to simplify ordering engine rigging components specific to a TDI Inboard
application ‑ contains a 3 meter engine to VAA harness, 20 foot engine unswitched Sim module(Service) with unique software for the engine
power harness, 10 foot vessel sensor extension harness, fuel level harness, 10 335 DTS Inboard TDI ‑ V8
foot drive application extension harness, a diagnostic port and a 3 foot diagnostic 77-8M0041671
yellow CAN cable. Does not include helm rigging (control, harnessing, gauges,
etc). Sim module(Service) with unique software for the engine
Can be used on all Mercury Diesel TDI inboard packages. 370 DTS Inboard TDI ‑ V8
SIMS MODULE MERCURY DIESEL TDI ENGINE HARNESS - ENGINE TO
VAA

77-8M0086461
Sim module(Service) with unique software for the engine 84-8M0066846
100 DTS Sterndrive TDI ‑ V6 2 meter engine to VAA harness
77-8M0086455 Mercury Diesel TDI 3.0L and 4.2L Engines
Sim module(Service) with unique software for the engine 8M0066847
260 DTS Sterndrive TDI ‑ V6 3 meter engine to VAA harness
77-8M0086462 Mercury Diesel TDI 3.0L and 4.2L Engines
Sim module(Service) with unique software for the engine 8M0066848
100 Mech Sterndrive TDI ‑ V6 4 meter engine to VAA harness
77-8M0086456 Mercury Diesel TDI 3.0L and 4.2L Engines
Sim module(Service) with unique software for the engine MERCURY DIESEL TDI MECHANICAL JOHNNY
230 DTS Sterndrive TDI ‑ V6 THROTTLE EXTENSION HARNESS
77-8M0086459
Sim module(Service) with unique software for the engine
230 Mech Sterndrive TDI ‑ V6
77-8M0086454
Sim module(Service) with unique software for the engine
260 DTS Sterndrive TDI ‑ V6
77-8M0086465
Sim module(Service) with unique software for the engine
230 DTS Inboard TDI ‑ V6 (4000 RPM)
77-8M0086467
Sim module(Service) with unique software for the engine 84-8M0079850
230 Mech Inboard TDI ‑ V6 (4000 RPM) Extension harness ‑ Throttle Mechanical ‑ 10 ft
77-8M0086469 Mercury Diesel TDI 3.0L and 4.2L Diesels, inlcuded in the mechanical engine
Sim module(Service) with unique software for the engine assembly kit
230 Mech Inboard TDI ‑ V6 (3500 RPM) 84-8M0079851
77-8M0086463 Extension harness ‑ Throttle Mechanical ‑ 20 ft
Sim module(Service) with unique software for the engine Mercury Diesel TDI 3.0L and 4.2L Diesels, inlcuded in the mechanical engine
260 DTS Inboard TDI ‑ V6 assembly kit
77-8M0086464
Sim module(Service) with unique software for the engine
260 Mech Inboard TDI ‑ V6

532 2019 Quicksilver Precision Parts & Accessories Guide
