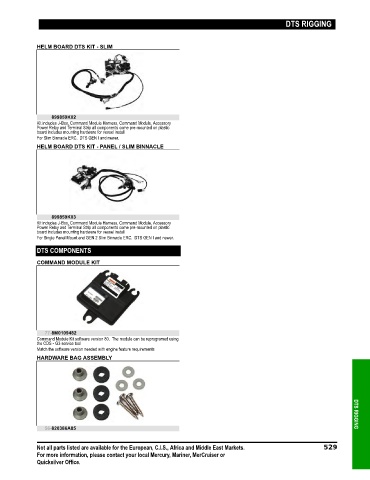

DTS RIGGING
HELM BOARD DTS KIT - SLIM
899859K02
Kit includes J‑Box, Command Module Harness, Command Module, Accessory
Power Relay and Terminal Strip all components come pre‑mounted on plastic
board includes mounting hardware for vessel install
For Slim Binnacle ERC. DTS GEN I and newer.
HELM BOARD DTS KIT - PANEL / SLIM BINNACLE
899859K03
Kit includes J‑Box, Command Module Harness, Command Module, Accessory
Power Relay and Terminal Strip all components come pre‑mounted on plastic
board includes mounting hardware for vessel install
For Single Panel Mount and GEN 2 Slim Binnacle ERC. DTS GEN I and newer.
DTS COMPONENTS
COMMAND MODULE KIT
77-8M0109482
Command Module Kit software version 80. The module can be reprogramed using
the CDS ‑ G3 service tool
Match the software version needed with engine feature requirements
HARDWARE BAG ASSEMBLY
56-820386A85 DTS RIGGING
