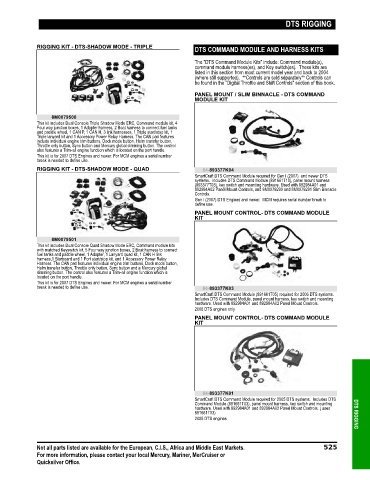

DTS RIGGING

RIGGING KIT - DTS-SHADOW MODE - TRIPLE
DTS COMMAND MODULE AND HARNESS KITS
The "DTS Command Module Kits" include: Command module(s),
command module harness(es), and Key switch(es). These kits are
listed in this section from most current model year and back to 2004
(where still supported). **Controls are sold separately** Controls can
be found in the "Digital Throttle and Shift Controls" section of this book.

PANEL MOUNT / SLIM BINNACLE - DTS COMMAND
MODULE KIT

8M0079500
This kit includes Dual Console Triple Shadow Mode ERC, Command module kit, 4
Four way junction boxes, 1 Adapter harness, 2 Boat harness to connect fuel tanks
and paddle wheel, 1 CAN P, 1 CAN H, 3 link harnesses, 1 Triple start/stop kit, 1
Triple lanyard kit and 1 Accessory Power Relay Harness. The CAN pad features
include individual engine trim buttons, Dock mode button, Helm transfer button,
Throttle only button, Sync button and Mercury global dimming button. The control
also features a Trim‑all engine function which is located on the port handle.
This kit is for 2007 DTS Engines and newer. For MCM engines a serial number
break is needed to define use.
RIGGING KIT - DTS-SHADOW MODE - QUAD 84-893377K04
SmartCraft DTS Command Module required for Gen I (2007) and newer DTS
systems. Includes DTS Command Module (891661T10), panel mount harness
(893377T03), key switch and mounting hardware. Used with 892984A01 and
892984A02 Panel Mount Controls, and 8M0079290 and 8M0079291 Slim Binnacle
Controls.
Gen I (2007) DTS Engines and newer. MCM requires serial number break to
define use.
PANEL MOUNT CONTROL- DTS COMMAND MODULE
KIT

8M0079501
This kit includes Dual Console Quad Shadow Mode ERC, Command module kits
with matched Keyswitch kit, 5 Four way junction boxes, 2 Boat harness to connect
fuel tanks and paddle wheel, 1 Adapter, 1 Lanyard quad kit, 1 CAN H link
harness,1 Starboard and 1 Port start/stop kit, and 1 Accessory Power Relay
Harness. The CAN pad features individual engine trim buttons, Dock mode button,
Helm transfer button, Throttle only button, Sync button and a Mercury global
dimming button. The control also features a Trim‑all engine function which is
located on the port handle.
This kit is for 2007 DTS Engines and newer. For MCM engines a serial number
break is needed to define use. 84-893377K03
SmartCraft DTS Command Module (891661T05) required for 2006 DTS systems.
Includes DTS Command Module, panel mount harness, key switch and mounting
hardware. Used with 892984A01 and 892984A02 Panel Mount Controls.
2006 DTS engines only
PANEL MOUNT CONTROL- DTS COMMAND MODULE
KIT

84-893377K01
SmartCraft DTS Command Module required for 2005 DTS systems. Includes DTS
Command Module (891661T03), panel mount harness, key switch and mounting
hardware. Used with 892984A01 and 892984A02 Panel Mount Controls. ( uses
891661T03) DTS RIGGING
2005 DTS engines

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 525
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
