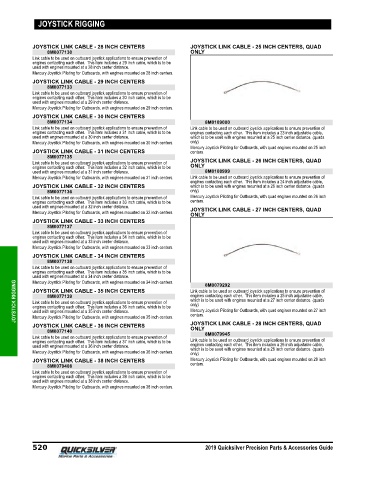

Page 527 - Quicksilver Accesories Guide 2019

JOYSTICK RIGGING

JOYSTICK LINK CABLE - 28 INCH CENTERS JOYSTICK LINK CABLE - 25 INCH CENTERS, QUAD
8M0077130 ONLY
Link cable to be used on outboard joystick applications to ensure prevention of
engines contacting each other. This item includes a 29 inch cable, which is to be
used with engines mounted at a 28 inch center distance.
Mercury Joystick Piloting for Outboards, with engines mounted on 28 inch centers.
JOYSTICK LINK CABLE - 29 INCH CENTERS
8M0077133
Link cable to be used on outboard joystick applications to ensure prevention of
engines contacting each other. This item includes a 30 inch cable, which is to be
used with engines mounted at a 29 inch center distance.
Mercury Joystick Piloting for Outboards, with engines mounted on 29 inch centers.
JOYSTICK LINK CABLE - 30 INCH CENTERS
8M0077134 8M0109000
Link cable to be used on outboard joystick applications to ensure prevention of Link cable to be used on outboard joystick applications to ensure prevention of
engines contacting each other. This item includes a 31 inch cable, which is to be engines contacting each other. This item includes a 23 inch adjustable cable,
used with engines mounted at a 30 inch center distance. which is to be used with engines mounted at a 25 inch center distance. (quads
Mercury Joystick Piloting for Outboards, with engines mounted on 30 inch centers. only)
Mercury Joystick Piloting for Outboards, with quad engines mounted on 25 inch
JOYSTICK LINK CABLE - 31 INCH CENTERS centers.
8M0077135
Link cable to be used on outboard joystick applications to ensure prevention of JOYSTICK LINK CABLE - 26 INCH CENTERS, QUAD
engines contacting each other. This item includes a 32 inch cable, which is to be ONLY
used with engines mounted at a 31 inch center distance. 8M0108999
Mercury Joystick Piloting for Outboards, with engines mounted on 31 inch centers. Link cable to be used on outboard joystick applications to ensure prevention of
engines contacting each other. This item includes a 24 inch adjustable cable,
JOYSTICK LINK CABLE - 32 INCH CENTERS which is to be used with engines mounted at a 26 inch center distance. (quads
8M0077136 only)
Link cable to be used on outboard joystick applications to ensure prevention of Mercury Joystick Piloting for Outboards, with quad engines mounted on 26 inch
engines contacting each other. This item includes a 33 inch cable, which is to be centers.
used with engines mounted at a 32 inch center distance. JOYSTICK LINK CABLE - 27 INCH CENTERS, QUAD
Mercury Joystick Piloting for Outboards, with engines mounted on 32 inch centers. ONLY
JOYSTICK LINK CABLE - 33 INCH CENTERS
8M0077137
Link cable to be used on outboard joystick applications to ensure prevention of
engines contacting each other. This item includes a 34 inch cable, which is to be
used with engines mounted at a 33 inch center distance.
Mercury Joystick Piloting for Outboards, with engines mounted on 33 inch centers.
JOYSTICK LINK CABLE - 34 INCH CENTERS
8M0077138
Link cable to be used on outboard joystick applications to ensure prevention of
engines contacting each other. This item includes a 35 inch cable, which is to be
used with engines mounted at a 34 inch center distance. 8M0079292
Mercury Joystick Piloting for Outboards, with engines mounted on 34 inch centers.
JOYSTICK RIGGING JOYSTICK LINK CABLE - 35 INCH CENTERS Link cable to be used on outboard joystick applications to ensure prevention of
engines contacting each other. This item includes a 25 inch adjustable cable,
8M0077139
which is to be used with engines mounted at a 27 inch center distance. (quads
Link cable to be used on outboard joystick applications to ensure prevention of
only)
engines contacting each other. This item includes a 36 inch cable, which is to be
Mercury Joystick Piloting for Outboards, with quad engines mounted on 27 inch
used with engines mounted at a 35 inch center distance.
Mercury Joystick Piloting for Outboards, with engines mounted on 35 inch centers.
JOYSTICK LINK CABLE - 28 INCH CENTERS, QUAD
JOYSTICK LINK CABLE - 36 INCH CENTERS centers.
ONLY
8M0077140
Link cable to be used on outboard joystick applications to ensure prevention of 8M0079945
engines contacting each other. This item includes a 37 inch cable, which is to be Link cable to be used on outboard joystick applications to ensure prevention of
used with engines mounted at a 36 inch center distance. engines contacting each other. This item includes a 26 inch adjustable cable,
which is to be used with engines mounted at a 28 inch center distance. (quads
Mercury Joystick Piloting for Outboards, with engines mounted on 36 inch centers. only)
JOYSTICK LINK CABLE - 38 INCH CENTERS Mercury Joystick Piloting for Outboards, with quad engines mounted on 28 inch
8M0079408 centers.
Link cable to be used on outboard joystick applications to ensure prevention of
engines contacting each other. This item includes a 39 inch cable, which is to be
used with engines mounted at a 38 inch center distance.
Mercury Joystick Piloting for Outboards, with engines mounted on 38 inch centers.

520 2019 Quicksilver Precision Parts & Accessories Guide
