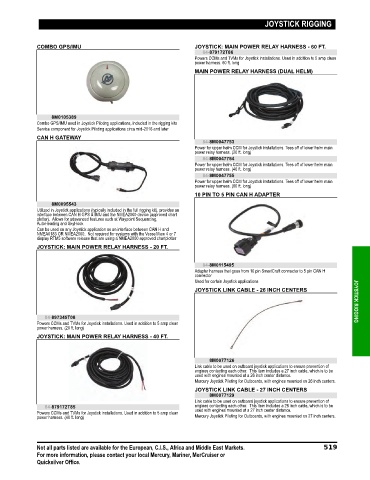

Page 526 - Quicksilver Accesories Guide 2019

JOYSTICK RIGGING

COMBO GPS/IMU JOYSTICK: MAIN POWER RELAY HARNESS - 60 FT.
84-879172T86
Powers CCMs and TVMs for Joystick installations. Used in addition to 5 amp clean
power harness. 60 ft. long
MAIN POWER RELAY HARNESS (DUAL HELM)

8M0105389
Combo GPS/IMU used in Joystick Piloting applications, included in the rigging kits
Service component for Joystick Piloting applications circa mid‑2016 and later
CAN H GATEWAY
84-8M0047753
Power for upper helm CCM for Joystick installations. Tees off of lower helm main
power relay harness. (20 ft. long)
84-8M0047754
Power for upper helm CCM for Joystick installations. Tees off of lower helm main
power relay harness. (40 ft. long)
84-8M0047755
Power for upper helm CCM for Joystick installations. Tees off of lower helm main
power relay harness. (60 ft. long)
10 PIN TO 5 PIN CAN H ADAPTER
8M0095543
Utilized in Joystick applications (typically included in the full rigging kit), provides an
interface between CAN H GPS & IMU and the NMEA2000 device (approved chart
plotter). Allows for adavanced features such at Waypoint Sequencing,
AutoHeading and SkyHook
Can be used on any Joystick application as an interface between CAN H and
NMEA0183 OR NMEA2000. Not required for systems with the VesselView 4 or 7
display RTM5 software release that are using a NMEA2000 approved chartplotter
JOYSTICK: MAIN POWER RELAY HARNESS - 20 FT.

84-8M0115495
Adapter harness that goes from 10 pin SmartCraft connector to 5 pin CAN H
connector
Used for certain Joystick applications
JOYSTICK LINK CABLE - 26 INCH CENTERS JOYSTICK RIGGING

84-897345T08
Powers CCMs and TVMs for Joystick installations. Used in addition to 5 amp clean
power harness. (20 ft. long)
JOYSTICK: MAIN POWER RELAY HARNESS - 40 FT.

8M0077126
Link cable to be used on outboard joystick applications to ensure prevention of
engines contacting each other. This item includes a 27 inch cable, which is to be
used with engines mounted at a 26 inch center distance.
Mercury Joystick Piloting for Outboards, with engines mounted on 26 inch centers.
JOYSTICK LINK CABLE - 27 INCH CENTERS
8M0077129
Link cable to be used on outboard joystick applications to ensure prevention of
84-879172T85 engines contacting each other. This item includes a 28 inch cable, which is to be
Powers CCMs and TVMs for Joystick installations. Used in addition to 5 amp clean used with engines mounted at a 27 inch center distance.
power harness. (40 ft. long) Mercury Joystick Piloting for Outboards, with engines mounted on 27 inch centers.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 519
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
