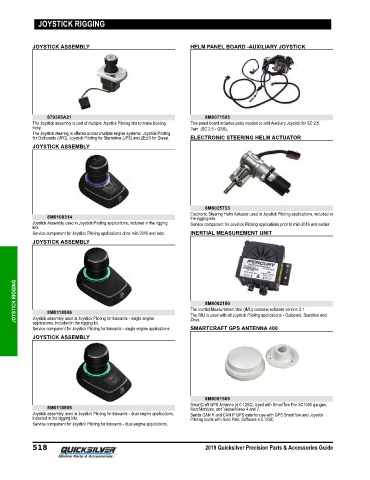

Page 525 - Quicksilver Accesories Guide 2019

JOYSTICK RIGGING

JOYSTICK ASSEMBLY HELM PANEL BOARD -AUXILIARY JOYSTICK

879365A21 8M0071505
The Joystick assembly is part of multiple Joystick Piloting kits to make boating This panel board includes parts needed to add Auxiliary Joystick for SC 2.5.
easy. Twin (SC 2.5 ‑ QSB).
The Joystick steering is offered across multiple engine systems. Joystick Piloting
for Outboards (JPO), Joystick Piloting for Sterndrive (JPS) and ZEUS for Diesel. ELECTRONIC STEERING HELM ACTUATOR
JOYSTICK ASSEMBLY

8M8025733
Electronic Steering Helm Actuator used in Joystick Piloting applications, included in
8M0108314 the rigging kits
Joystick Assembly used in Joystick Piloting applications, included in the rigging Service component for Joystick Piloting applications prior to mid‑2016 and earlier
kits.
Service component for Joystick Piloting applications circa mid‑2016 and later. INERTIAL MEASUREMENT UNIT
JOYSTICK ASSEMBLY

JOYSTICK RIGGING 8M0118806 The Inertial Measurement Unit (IMU) contains software version 3.1.

8M6002180
The IMU is used with all Joystick Piloting applications ‑ Outboard, Sterdrive and
Joystick assembly used in Joystick Piloting for Inboards ‑ single engine
applications, included in the rigging kit.
SMARTCRAFT GPS ANTENNA 400
Service component for Joystick Piloting for Inboards ‑ single engine applications. Zeus.
JOYSTICK ASSEMBLY

8M0091565
SmartCraft GPS Antenna (4.0.12SC) Used with SmartTow Pro SC1000 gauges,
8M0118808 MercMonitors, and VesselViews 4 and 7.
Joystick assembly used in Joystick Piloting for Inboards ‑ dual engine applications, Sends CAN H and CAN P GPS data for use with GPS SmartTow and Joystick
included in the rigging kits. Piloting boats with Auto Pilot. Software 4.0.12SC
Service component for Joystick Piloting for Inboards ‑ dual engine applications.
