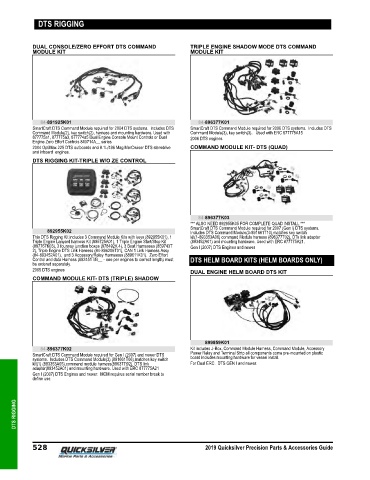

Page 535 - Quicksilver Accesories Guide 2019

DTS RIGGING

DUAL CONSOLE/ZERO EFFORT DTS COMMAND TRIPLE ENGINE SHADOW MODE DTS COMMAND
MODULE KIT MODULE KIT

84-891925K01 84-896377K01
SmartCraft DTS Command Module required for 2004 DTS systems. Includes DTS SmartCraft DTS Command Module required for 2006 DTS systems. Includes DTS
Command Module(2), key switch(2), harness and mounting hardware. Used with Command Module(3), key switch(3). Used with ERC 877775A15
877775a1, 877775a3, 877774a5 Dual Engine Console Mount Controls or Dual 2006 DTS engines
Engine Zero Effort Controls 840714A__ series
2004 OptiMax 225 DTS outboards and 8.1L/496 Mag MerCruiser DTS sterndrive COMMAND MODULE KIT- DTS (QUAD)
and inboard engines.
DTS RIGGING KIT-TRIPLE W/O ZE CONTROL

84-896377K03
*** ALSO NEED 892955K05 FOR COMPLETE QUAD INSTALL ***
SmartCraft DTS Command Module required for 2007 (Gen I) DTS systems.
892955K02 Includes DTS Command Module(3‑891661T10),matches key switch
This DTS Rigging Kit includes 3 Command Module Kits with keys (892955K01), 1 kit(1‑893353A06) command Module harness (896377T02), DTs link adapter
Triple Engine Lanyard harness Kit (895725A01), 1 Triple Engine Start/Stop Kit (893452A01) and mounting hardware. Used with ERC 877775A21.
(887767K03), 3 fourway junction boxes (878492K 4), 3 Boat Harnesses (859743T Gen I (2007) DTS Engines and newer
2), Triple Engine DTS Link Harness (84‑896206T01), CAN 1 Link Harness Assy
(84‑893452A01), and 3 Accessory/Relay Harnesses (889611K01). Zero Effort
Control and data Harness (892451T/B__ ‑ one per engines to correct length) must DTS HELM BOARD KITS (HELM BOARDS ONLY)
be ordered separately.
2005 DTS engines DUAL ENGINE HELM BOARD DTS KIT
COMMAND MODULE KIT- DTS (TRIPLE) SHADOW

899859K01
84-896377K02 Kit includes J‑Box, Command Module Harness, Command Module, Accessory
SmartCraft DTS Command Module required for Gen I (2007) and newer DTS Power Relay and Terminal Strip all components come pre‑mounted on plastic
systems. Includes DTS Command Module(3) (891661T06),matches key switch board includes mounting hardware for vessel install.
kIt(1) (893353A05),command module harness(896377t02), DTS link For Dual ERC. DTS GEN I and newer.
adapter(893452A01) and mounting hardware. Used with ERC 877775A21
Gen I (2007) DTS Engines and newer. MCM requires serial number break to
define use.

DTS RIGGING

528 2019 Quicksilver Precision Parts & Accessories Guide
