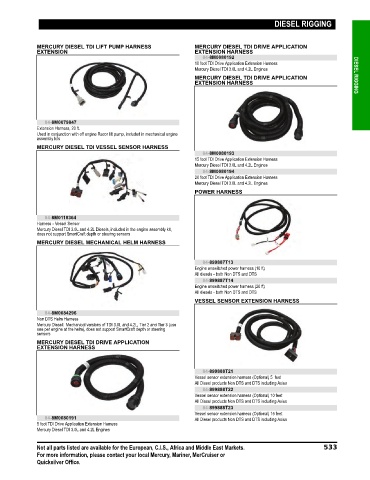

Page 540 - Quicksilver Accesories Guide 2019

DIESEL RIGGING

MERCURY DIESEL TDI LIFT PUMP HARNESS MERCURY DIESEL TDI DRIVE APPLICATION
EXTENSION EXTENSION HARNESS
84-8M0080192
10 foot TDI Drive Application Extension Harness
Mercury Diesel TDI 3.0L and 4.2L Engines
MERCURY DIESEL TDI DRIVE APPLICATION DIESEL RIGGING
EXTENSION HARNESS

84-8M0079847
Extension Harness, 20 ft.
Used in conjunction with off engine Racor lift pump, included in mechanical engine
assembly kits
MERCURY DIESEL TDI VESSEL SENSOR HARNESS
84-8M0080193
15 foot TDI Drive Application Extension Harness
Mercury Diesel TDI 3.0L and 4.2L Engines
84-8M0080194
20 foot TDI Drive Application Extension Harness
Mercury Diesel TDI 3.0L and 4.2L Engines
POWER HARNESS

84-8M0118364
Harness ‑ Vessel Sensor
Mercury Diesel TDI 3.0L and 4.2L Diesels, included in the engine assembly kit,
does not support SmartCraft depth or steering sensors
MERCURY DIESEL MECHANICAL HELM HARNESS

84-899887T13
Engine unswitched power harness (10 ft)
All diesels ‑ both Non DTS and DTS
84-899887T14
Engine unswitched power harness (20 ft)
All diesels ‑ both Non DTS and DTS
VESSEL SENSOR EXTENSION HARNESS
84-8M0084296
Non DTS Helm Harness
Mercury Diesel: Mechanical versions of TDI 3.0L and 4.2L, Tier 2 and Tier 3 (use
one per engine at the helm), does not support SmartCraft depth or steering
sensors
MERCURY DIESEL TDI DRIVE APPLICATION
EXTENSION HARNESS

84-899888T21
Vessel sensor extension harness (Optional) 5 feet
All Diesel products Non DTS and DTS including Axius
84-899888T22
Vessel sensor extension harness (Optional) 10 feet
All Diesel products Non DTS and DTS including Axius
84-899888T23
Vessel sensor extension harness (Optional) 15 feet
84-8M0080191 All Diesel products Non DTS and DTS including Axius
5 foot TDI Drive Application Extension Harness
Mercury Diesel TDI 3.0L and 4.2L Engines

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 533
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
