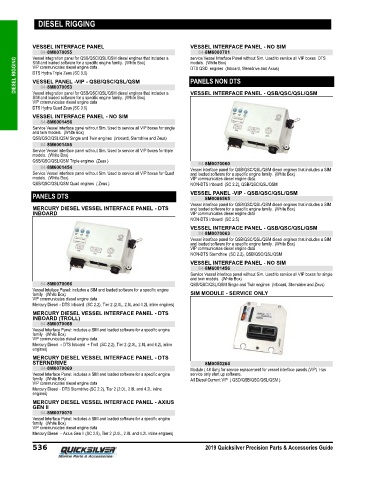

Page 543 - Quicksilver Accesories Guide 2019

DIESEL RIGGING

VESSEL INTERFACE PANEL VESSEL INTERFACE PANEL - NO SIM
84-8M6000701
84-8M0070055 service Vessel Interface Panel without Sim. Used to service all VIP boxes DTS
Vessel integration panel for QSB/QSC/QSL/QSM diesel engines that includes a
DIESEL RIGGING VIP communicates diesel engine data . DTS QSD engines (Inboard, Sterndrive and Axius)
SIM and loaded software for a specific engine family. (White Box)
models. (White Box)
DTS Hydra Triple Zeus (SC 3.0)
PANELS NON DTS
VESSEL PANEL -VIP - QSB/QSC/QSL/QSM
84-8M0070053
Vessel integration panel for QSB/QSC/QSL/QSM diesel engines that includes a
SIM and loaded software for a specific engine family. (White Box) VESSEL INTERFACE PANEL - QSB/QSC/QSL/QSM
VIP communicates diesel engine data
DTS Hydra Quad Zeus (SC 3.0)
VESSEL INTERFACE PANEL - NO SIM
84-8M6001456
Service Vessel interface panel without Sim. Used to service all VIP boxes for single
and twin models. (White Box)
QSB/QSC/QSL/QSM Single and Twin engines (Inboard, Sterndrive and Zeus)
84-8M6001455
Service Vessel interface panel without Sim. Used to service all VIP boxes for triple
models. (White Box)
QSB/QSC/QSL/QSM Triple engines (Zeus ) 84-8M0070060
84-8M6001454 Vessel interface panel for QSB/QSC/QSL/QSM diesel engines that includes a SIM
Service Vessel interface panel without Sim. Used to service all VIP boxes for Quad and loaded software for a specific engine family. (White Box)
models. (White Box) VIP communicates diesel engine data.
QSB/QSC/QSL/QSM Quad engines ( Zeus ) NON‑DTS Inboard (SC 2.2), QSB/QSC/QSL/QSM

PANELS DTS VESSEL PANEL -VIP - QSB/QSC/QSL/QSM
8M0086565
Vessel interface panel for QSB/QSC/QSL/QSM diesel engines that includes a SIM
MERCURY DIESEL VESSEL INTERFACE PANEL - DTS and loaded software for a specific engine family. (White Box)
INBOARD VIP communicates diesel engine data
NON‑DTS Inboard (SC 2.5)
VESSEL INTERFACE PANEL - QSB/QSC/QSL/QSM
84-8M0070063
Vessel interface panel for QSB/QSC/QSL/QSM diesel engines that includes a SIM
and loaded software for a specific engine family. (White Box)
VIP communicates diesel engine data
NON‑DTS Sterndrive (SC 2.2), QSB/QSC/QSL/QSM
VESSEL INTERFACE PANEL - NO SIM
84-8M6001456
Service Vessel interface panel without Sim. Used to service all VIP boxes for single
and twin models. (White Box)
84-8M0070066 QSB/QSC/QSL/QSM Single and Twin engines (Inboard, Sterndrive and Zeus)
Vessel Inteface Panel: includes a SIM and loaded software for a specific engine
family. (White Box) SIM MODULE - SERVICE ONLY
VIP communicates diesel engine data
Mercury Diesel ‑ DTS Inboard (SC 2.2), Tier 2 (2.0L, 2.8L and 4.2L inline engines)
MERCURY DIESEL VESSEL INTERFACE PANEL - DTS
INBOARD (TROLL)
84-8M0070068
Vessel Interface Panel: includes a SIM and loaded software for a specific engine
family. (White Box)
VIP communicates diesel engine data.
Mercury Diesel ‑ DTS Inboard + Troll (SC 2.2), Tier 2 (2.0L, 2.8L and 4.2L inline
engines)
MERCURY DIESEL VESSEL INTERFACE PANEL - DTS
STERNDRIVE 8M0050264
84-8M0070069 Module ( 48 Sim) for service replacement for vessel interface panels (VIP) Has
Vessel Interface Panel: includes a SIM and loaded software for a specific engine service only start up software.
family. (White Box) All Diesel Current VIP ( QSD/QSB/QSC/QSL/QSM )
VIP communicates diesel engine data
Mercury Diesel ‑ DTS Sterndrive (SC 2.2), Tier 2 (2.0L, 2.8L and 4.2L inline
engines)
MERCURY DIESEL VESSEL INTERFACE PANEL - AXIUS
GEN II
84-8M0070070
Vessel Interface Panel: includes a SIM and loaded software for a specific engine
family. (White Box)
VIP communicates diesel engine data
Mercury Diesel ‑ Axius Gen II (SC 2.5), Tier 2 (2.0L, 2.8L and 4.2L inline engines)
536 2019 Quicksilver Precision Parts & Accessories Guide
