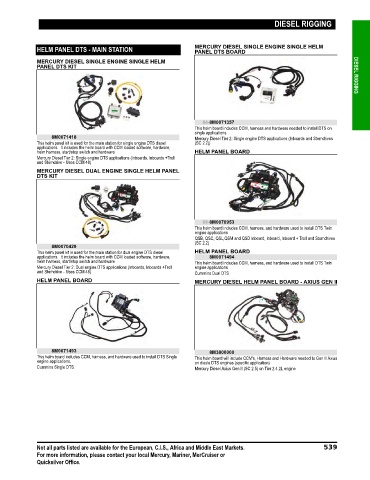

Page 546 - Quicksilver Accesories Guide 2019

DIESEL RIGGING

HELM PANEL DTS - MAIN STATION MERCURY DIESEL SINGLE ENGINE SINGLE HELM
PANEL DTS BOARD
MERCURY DIESEL SINGLE ENGINE SINGLE HELM
PANEL DTS KIT DIESEL RIGGING

84-8M0071357
This helm board includes CCM, harness and hardware needed to install DTS on
single applications.
8M0071418 Mercury Diesel Tier 2: Single engine DTS applications (Inboards and Sterndrives
This helm panel kit is used for the main station for single engine DTS diesel (SC 2.2))
applications. It includes the helm board with CCM loaded software, hardware,
helm harness, start/stop switch and hardware HELM PANEL BOARD
Mercury Diesel Tier 2: Single engine DTS applications (Inboards, Inboards +Troll
and Sterndrive ‑ Uses CCM 48)
MERCURY DIESEL DUAL ENGINE SINGLE HELM PANEL
DTS KIT

98-8M0070953
This helm board includes CCM, harness, and hardware used to install DTS Twin
engine applications
QSB, QSC, QSL,QSM and QSD Inboard, Inboard, Inboard + Troll and Sterndrives
(SC 2.2)
8M0070429
This helm panel kit is used for the main station for dual engine DTS diesel HELM PANEL BOARD
applications. It includes the helm board with CCM loaded software, hardware, 8M0071494
helm harness, start/stop switch and hardware This helm board includes CCM, harness, and hardware used to install DTS Twin
Mercury Diesel Tier 2: Dual engine DTS applications (Inboards, Inboards +Troll engine applications
and Sterndrive ‑ Uses CCM 48) Cummins Dual DTS
HELM PANEL BOARD MERCURY DIESEL HELM PANEL BOARD - AXIUS GEN II

8M0071493 8M3800000
This helm board includes CCM, harness, and hardware used to install DTS Single This helm board will include CCM's, Harness and Hardware needed to Gen II Axius
engine applications. on diesle DTS engines (specific application)
Cummins Single DTS. Mercury Diesel Axius Gen II (SC 2.5) on Tier 2 4.2L engine

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 539
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
