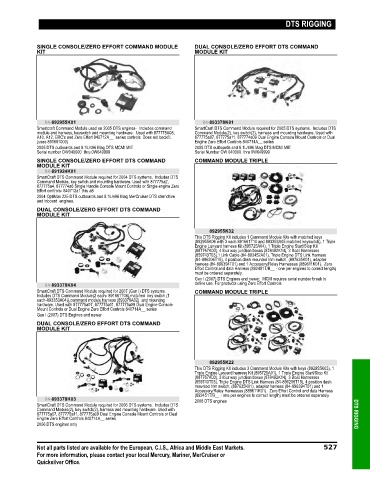

Page 534 - Quicksilver Accesories Guide 2019

DTS RIGGING

SINGLE CONSOLE/ZERO EFFORT COMMAND MODULE DUAL CONSOLE/ZERO EFFORT DTS COMMAND
KIT MODULE KIT

84-892955K01 84-893378K01
Smartcraft Command Module used on 2005 DTS engines‑ Includes command SmartCraft DTS Command Module required for 2005 DTS systems. Includes DTS
module and harness, keyswitch and mounting hardware. Used with 877775A08, Command Module(2), key switch(2), harness and mounting hardware. Used with
A10, A12, ERC's and Zero Effort 840712A__ series controls Does not backfit. 877775a07, 877775a11, 877774a09 Dual Engine Console Mount Controls or Dual
(uses 891661003) Engine Zero Effort Controls 840714A__ series
2005 DTS outboards and 8.1L/496 Mag DTS MCM/ MIE 2005 DTS outboards and 8.1L/496 Mag DTS MCM/ MIE
Serial number OW040000 thru 0W649999 Serial Number OW 040000 thru 0W649999
SINGLE CONSOLE/ZERO EFFORT DTS COMMAND COMMAND MODULE TRIPLE
MODULE KIT
84-891924K01
SmartCraft DTS Command Module required for 2004 DTS systems. Includes DTS
Command Module, key switch and mounting hardware. Used with 877775a2,
877775a4, 877774a6 Single Handle Console Mount Controls or Single engine Zero
Effort controls‑ 840712a1 thru a8
2004 OptiMax 225 DTS outboards and 8.1L/496 Mag MerCruiser DTS sterndrive
and inboard engines.
DUAL CONSOLE/ZERO EFFORT DTS COMMAND
MODULE KIT

892955K32
This DTS Rigging Kit includes 1 Command Module Kits with matched keys
(892955K06 with 3 each 891661T10 and 893353A05 matched keyswitch), 1 Triple
Engine Lanyard harness Kit (895725A04), 1 Triple Engine Start/Stop Kit
(887767K03), 4 four way junction boxes (878492K14), 2 Boat Harnesses
(859743T03),1 Link Cable (84‑893452A01), Triple Engine DTS Link Harness
(84‑896206T15), 4 position dash mounted trim switch, (897635K01), adapter
harness (84‑896394T01) and 1 Accessory/Relay Harnesses (889611K01). Zero
Effort Control and data Harness (892451T/B__ ‑ one per engines to correct length)
must be ordered separately.
Gen I (2007) DTS Engines and newer. MCM requires serial number break to
84-893378K04 define use. For products using Zero Effort Controls
SmartCraft DTS Command Module required for 2007 (Gen I) DTS systems. COMMAND MODULE TRIPLE
Includes DTS Command Module(2 each‑ 891661T06),matched key switch (1
each‑893353A04)),command module harness (893378A02) and mounting
hardware. Used with 877775a07, 877775a11, 877775a09 Dual Engine Console
Mount Controls or Dual Engine Zero Effort Controls 840714A__ series
Gen I (2007) DTS Engines and newer
DUAL CONSOLE/ZERO EFFORT DTS COMMAND
MODULE KIT

892955K22
This DTS Rigging Kit includes 3 Command Module Kits with keys (892955K03), 1
Triple Engine Lanyard harness Kit (895725A01), 1 Triple Engine Start/Stop Kit
(887767K03), 3 four way junction boxes (878492K14), 3 Boat Harnesses
(859743T03), Triple Engine DTS Link Harness (84‑896206T15), 4 position dash
mounted trim switch, (897635K01), adapter harness (84‑896394T01) and 1
Accessory/Relay Harnesses (889611K01). Zero Effort Control and data Harness
(892451T/B__ ‑ one per engines to correct length) must be ordered separately.
84-893378K03 2006 DTS engines
SmartCraft DTS Command Module required for 2006 DTS systems. Includes DTS
Command Module(2), key switch(2), harness and mounting hardware. Used with
877775a07, 877775a11, 877775a09 Dual Engine Console Mount Controls or Dual DTS RIGGING
Engine Zero Effort Controls 840714A__ series
2006 DTS engines only

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 527
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
