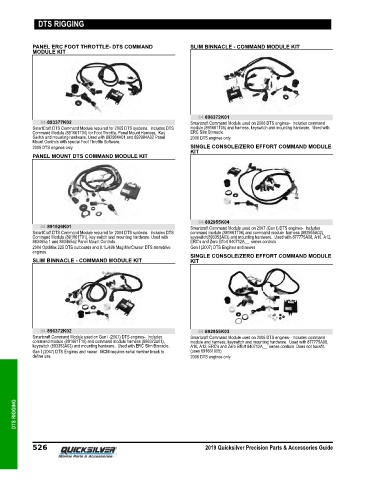

Page 533 - Quicksilver Accesories Guide 2019

DTS RIGGING

PANEL ERC FOOT THROTTLE- DTS COMMAND SLIM BINNACLE - COMMAND MODULE KIT
MODULE KIT

84-896372K01
84-893377K02 Smartcraft Command Module used on 2006 DTS engines‑ Includes command
SmartCraft DTS Command Module required for 2005 DTS systems. Includes DTS module (891661T05) and harness, keyswitch and mounting hardware. Used with
Command Module (891661T04) for Foot Throttle, Panel Mount Harness, Key ERC Slim Binnacle.
Switch and mounting hardware. Used with 892984A01 and 892984A02 Panel 2006 DTS engines only
Mount Controls with special Foot Throttle Software.
2005 DTS engines only SINGLE CONSOLE/ZERO EFFORT COMMAND MODULE
KIT
PANEL MOUNT DTS COMMAND MODULE KIT

84-892955K04
84-891926K01 Smartcraft Command Module used on 2007 (Gen I) DTS engines‑ Includes
SmartCraft DTS Command Module required for 2004 DTS systems. Includes DTS command module (891661T06) and command module harness (892955A02),
Command Module (891661T01), key switch and mounting hardware. Used with keyswitch(893353A03) and mounting hardware. Used with 877775A08, A10, A12,
883465a 1 and 883465a2 Panel Mount Controls. ERC's and Zero Effort 840712A__ series controls
2004 OptiMax 225 DTS outboards and 8.1L/496 Mag MerCruiser DTS sterndrive Gen I (2007) DTS Engines and newer
engines.
SINGLE CONSOLE/ZERO EFFORT COMMAND MODULE
SLIM BINNACLE - COMMAND MODULE KIT KIT

84-896372K02 84-892955K03
Smartcraft Command Module used on Gen I (2007) DTS engines‑ Includes Smartcraft Command Module used on 2006 DTS engines‑ Includes command
command module (891661T10) and command module harness (896372a01), module and harness, keyswitch and mounting hardware. Used with 877775A08,
keyswitch (893353A03) and mounting hardware. Used with ERC Slim Binnacle. A10, A12, ERC's and Zero Effort 840712A__ series controls Does not backfit.
Gen I (2007) DTS Engines and newer. MCM requires serial number break to (uses 891661005)
define use. 2006 DTS engines only

DTS RIGGING
