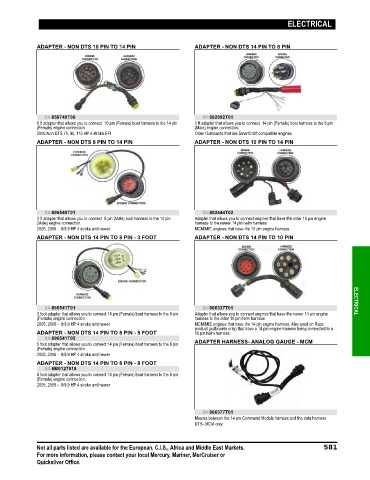

Page 588 - Quicksilver Accesories Guide 2019

ELECTRICAL

ADAPTER - NON DTS 10 PIN TO 14 PIN ADAPTER - NON DTS 14 PIN TO 8 PIN

84-858740T06 84-892092T01
6 ft adapter that allows you to connect 10 pin (Female) boat harness to the 14 pin 1 ft adapter that allows you to connect 14 pin (Female) boat harness to the 8 pin
(Female) engine connection. (Male) engine connection.
2006 Non DTS 75, 90, 115 HP 4 stroke EFI Older Outboards that are SmartCraft compatible engines
ADAPTER - NON DTS 8 PIN TO 14 PIN ADAPTER - NON DTS 10 PIN TO 14 PIN

84-896540T01 84-892444T02
3 ft adapter that allows you to connect 8 pin (Male) boat harness to the 14 pin Adapter that allows you to connect engines that have the older 10 pin engine
(Male) engine connection. harness to the newer 14 pin helm harness
2005, 2006 ‑ 8/9.9 HP 4 stroke and newer MCM/MIE engines that have the 10 pin engine harness.
ADAPTER - NON DTS 14 PIN TO 8 PIN - 3 FOOT ADAPTER - NON DTS 14 PIN TO 10 PIN

84-896541T01 84-866337T01 ELECTRICAL
3 foot adapter that allows you to connect 14 pin (Female) boat harness to the 8 pin Adapter that allows you to connect engines that have the newer 14 pin engine
(Female) engine connection. harness to the older 10 pin helm harness
2005, 2006 ‑ 8/9.9 HP 4 stroke and newer MCM/MIE engines that have the 14 pin engine harness. Also used on Race
product (outboards only) that have a 14 pin engine harness being connected to a
ADAPTER - NON DTS 14 PIN TO 8 PIN - 5 FOOT 10 pin helm harness.
84-896541T05
5 foot adapter that allows you to connect 14 pin (Female) boat harness to the 8 pin ADAPTER HARNESS- ANALOG GAUGE - MCM
(Female) engine connection.
2005, 2006 ‑ 8/9.9 HP 4 stroke and newer
ADAPTER - NON DTS 14 PIN TO 8 PIN - 8 FOOT
84-8M0127018
8 foot adapter that allows you to connect 14 pin (Female) boat harness to the 8 pin
(Female) engine connection.
2005, 2006 ‑ 8/9.9 HP 4 stroke and newer

84-866377T01
Mounts between the 14 pin Command Module harness and the data harness
DTS‑ MCM only

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 581
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
