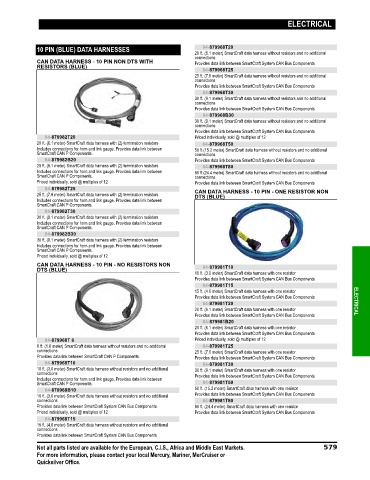

Page 586 - Quicksilver Accesories Guide 2019

ELECTRICAL

10 PIN (BLUE) DATA HARNESSES 84-879968T20
20 ft. (6.1 meter) SmartCraft data harness without resistors and no additional
connections
CAN DATA HARNESS - 10 PIN NON DTS WITH Provides data link between SmartCraft System CAN Bus Components
RESISTORS (BLUE)
84-879968T25
25 ft. (7.6 meter) SmartCraft data harness without resistors and no additional
connections
Provides data link between SmartCraft System CAN Bus Components
84-879968T30
30 ft. (9.1 meter) SmartCraft data harness without resistors and no additional
connections
Provides data link between SmartCraft System CAN Bus Components
84-879968B30
30 ft. (9.1 meter) SmartCraft data harness without resistors and no additional
connections
Provides data link between SmartCraft System CAN Bus Components
84-879982T20 Priced individually, sold @ multiples of 12
20 ft. (6.1 meter) SmartCraft data harness with (2) termination resistors 84-879968T50
Includes connections for horn and link gauge. Provides data link between 50 ft (15.2 meter) SmartCraft data harness without resistors and no additional
SmartCraft CAN P Components. connections
84-879982B20 Provides data link between SmartCraft System CAN Bus Components
20 ft. (6.1 meter) SmartCraft data harness with (2) termination resistors 84-879968T80
Includes connections for horn and link gauge. Provides data link between 80 ft (24.4 meter) SmartCraft data harness without resistors and no additional
SmartCraft CAN P Components. connections
Priced individually, sold @ multiples of 12 Provides data link between SmartCraft System CAN Bus Components
84-879982T25 CAN DATA HARNESS - 10 PIN - ONE RESISTOR NON
25 ft. (7.6 meter) SmartCraft data harness with (2) termination resistors DTS (BLUE)
Includes connections for horn and link gauge. Provides data link between
SmartCraft CAN P Components.
84-879982T30
30 ft. (9.1 meter) SmartCraft data harness with (2) termination resistors
Includes connections for horn and link gauge. Provides data link between
SmartCraft CAN P Components.
84-879982B30
30 ft. (9.1 meter) SmartCraft data harness with (2) termination resistors
Includes connections for horn and link gauge. Provides data link between
SmartCraft CAN P Components.
Priced individually, sold @ multiples of 12
CAN DATA HARNESS - 10 PIN - NO RESISTORS NON 84-879981T10
DTS (BLUE)
10 ft. (3.0 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft System CAN Bus Components
84-879981T15
15 ft. (4.6 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft System CAN Bus Components
84-879981T20 ELECTRICAL
20 ft. (6.1 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft System CAN Bus Components
84-879981B20
20 ft. (6.1 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft System CAN Bus Components
84-879968T 6 Priced individually, sold @ multiples of 12
6 ft. (1.8 meter) SmartCraft data harness without resistors and no additional 84-879981T25
connections 25 ft. (7.6 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft CAN P Components. Provides data link between SmartCraft System CAN Bus Components
84-879968T10 84-879981T30
10 ft. (3.0 meter) SmartCraft data harness without resistors and no additional 30 ft. (9.1 meter) SmartCraft data harness with one resistor
connections Provides data link between SmartCraft System CAN Bus Components
Includes connections for horn and link gauge. Provides data link between
SmartCraft CAN P Components. 84-879981T50
84-879968B10 50 ft. (15.2 meter) SmartCraft data harness with one resistor
10 ft. (3.0 meter) SmartCraft data harness without resistors and no additional Provides data link between SmartCraft System CAN Bus Components
connections 84-879981T80
Provides data link between SmartCraft System CAN Bus Components 80 ft. (24.4 meter) SmartCraft data harness with one resistor
Priced individually, sold @ multiples of 12 Provides data link between SmartCraft System CAN Bus Components
84-879968T15
15 ft. (4.6 meter) SmartCraft data harness without resistors and no additional
connections
Provides data link between SmartCraft System CAN Bus Components

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 579
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
