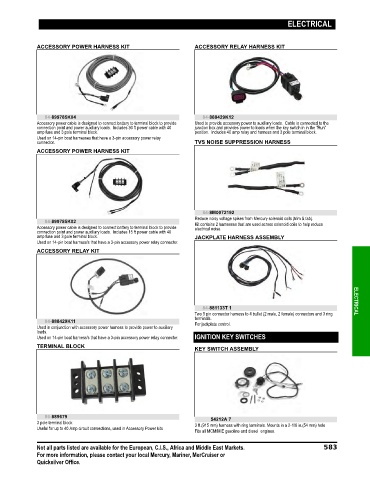

Page 590 - Quicksilver Accesories Guide 2019

ELECTRICAL

ACCESSORY POWER HARNESS KIT ACCESSORY RELAY HARNESS KIT

84-899785K04 84-888429K12
Accessory power cable is designed to connect battery to terminal block to provide Used to provide accessory power to auxiliary loads. Cable is connected to the
connection point and power auxiliary loads. Includes 30 ft power cable with 40 junction box and provides power to loads when the key switch in in the "Run"
amp fuse and 3 pole terminal block. position. Includes 40 amp relay and harness and 3 pole terminal block.
Used on 14‑pin boat harnesses that have a 3‑pin accessory power relay
connector. TVS NOISE SUPPRESSION HARNESS
ACCESSORY POWER HARNESS KIT

84-8M0072192
Reduce noisy voltage spikes from Mercury solenoid coils (trim & tab).
84-899785K02
Accessory power cable is designed to connect battery to terminal block to provide Kit contains 2 harnesses that are used across solenoid coils to help reduce
electrical noise.
connection point and power auxiliary loads. Includes 15 ft power cable with 40
amp fuse and 3 pole terminal block. JACKPLATE HARNESS ASSEMBLY
Used on 14‑pin boat harness's that have a 3‑pin accessory power relay connector.
ACCESSORY RELAY KIT

84-881133T 1 ELECTRICAL
Two 5 pin connector harness to 4 bullet (2 male, 2 female) connectors and 3 ring
terminals.
84-888429K11 For jackplate control.
Used in conjunction with accessory power harness to provide power to auxiliary
loads.
Used on 14‑pin boat harness's that have a 3‑pin accessory power relay connector. IGNITION KEY SWITCHES
TERMINAL BLOCK
KEY SWITCH ASSEMBLY

86-889679 54212A 7
3 pole terminal block 3 ft.(915 mm) harness with ring terminals. Mounts in a 2‑1/8 in.(54 mm) hole
Useful for up to 40 Amp circuit connections, used in Accessory Power kits
Fits all MCM/MIE gasoline and diesel engines.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 583
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
