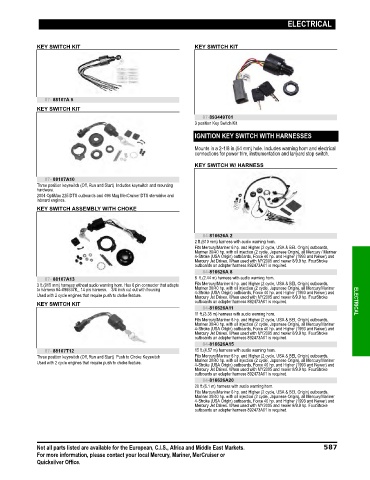

Page 594 - Quicksilver Accesories Guide 2019

ELECTRICAL

KEY SWITCH KIT KEY SWITCH KIT

87- 88107A 5
KEY SWITCH KIT
87-893449T01
3 position Key Switch Kit
IGNITION KEY SWITCH WITH HARNESSES

Mounts in a 2‑1/8 in.(54 mm) hole. Includes warning horn and electrical
connections for power trim, instrumentation and lanyard stop switch.

KEY SWITCH W/ HARNESS
87- 88107A10
Three position keyswitch (Off, Run and Start) Includes keyswitch and mounting
hardware.
2004 OptiMax 225 DTS outboards and 496 Mag MerCruiser DTS sterndrive and
inboard engines.
KEY SWITCH ASSEMBLY WITH CHOKE

84-816626A 2
2 ft.(610 mm) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury / Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
outboards an adapter harness 892473A01 is required.
84-816626A 8
87- 88107A13 8 ft.(2.44 m) harness with audio warning horn.
3 ft.(915 mm) harness without audio warning horn. Has 6 pin connector that adapts Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
to harness 84‑896537K_ 14 pin harness. 3/4 inch cut out with housing Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury/Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Used with 2 cycle engines that require push to choke feature. Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
KEY SWITCH KIT outboards an adapter harness 892473A01 is required. ELECTRICAL
84-816626A11
11 ft.(3.35 m) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury/Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
outboards an adapter harness 892473A01 is required.
84-816626A15
87- 88107T12 15 ft.(4.57 m) harness with audio warning horn.
Three position keyswitch (Off, Run and Start) Push to Choke Keyswitch Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Used with 2 cycle engines that require push to choke feature. Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury/Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
outboards an adapter harness 892473A01 is required.
84-816626A20
20 ft.(6.1 m) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury/Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
outboards an adapter harness 892473A01 is required.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 587
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
