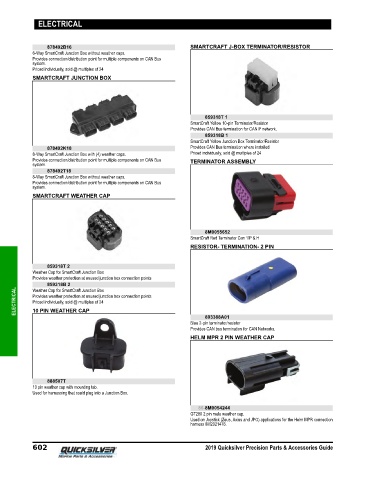

Page 609 - Quicksilver Accesories Guide 2019

ELECTRICAL

878492B16 SMARTCRAFT J-BOX TERMINATOR/RESISTOR
6‑Way SmartCraft Junction Box without weather caps.
Provides connection/distribution point for multiple components on CAN Bus
system.
Priced individually, sold @ multiples of 24
SMARTCRAFT JUNCTION BOX

859318T 1
SmartCraft Yellow 10‑pin Terminator/Resistor
Provides CAN Bus termination for CAN P network.
859318B 1
SmartCraft Yellow Junction Box Terminator/Resistor
878492K18 Provides CAN Bus termination where installed
8‑Way SmartCraft Junction Box with (4) weather caps. Priced individually, sold @ multiples of 24
Provides connection/distribution point for multiple components on CAN Bus TERMINATOR ASSEMBLY
system.
878492T18
8‑Way SmartCraft Junction Box without weather caps.
Provides connection/distribution point for multiple components on CAN Bus
system.
SMARTCRAFT WEATHER CAP

8M0055652
SmartCraft Red Terminator Can 1/P & H
RESISTOR- TERMINATION- 2 PIN

859318T 2
Weather Cap for SmartCraft Junction Box
Provides weather protection at unused junction box connection points
859318B 2
ELECTRICAL Provides weather protection at unused junction box connection points
Weather Cap for SmartCraft Junction Box
Priced individually, sold @ multiples of 24
10 PIN WEATHER CAP
893388A01
Blue 2‑pin terminator/resistor
Provides CAN bus termination for CAN Networks.
HELM MPR 2 PIN WEATHER CAP

888507T
10 pin weather cap with mounting tab.
Used for harnessing that could plug into a Junction Box.

86-8M0054244
GT280 2 pin male weather cap.
Used on Joystick (Zeus, Axius and JPO) applications for the Helm MPR connection
harness 8M2021476.

602 2019 Quicksilver Precision Parts & Accessories Guide
