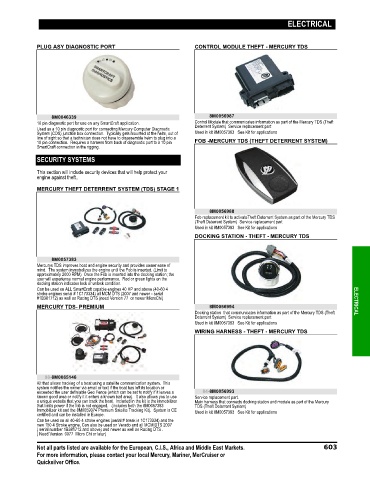

Page 610 - Quicksilver Accesories Guide 2019

ELECTRICAL

PLUG ASY DIAGNOSTIC PORT CONTROL MODULE THEFT - MERCURY TDS

8M0046339 8M0056987
10 pin diagnostic port for use on any SmartCraft application. Control Module that communicates information as part of the Mercury TDS (Theft
Used as a 10 pin diagnostic port for connecting Mercury Computer Diagnostic Deterrent System) Service replacement part
System (CDS) junction box connection. Typically gets mounted at the helm, out of Used in kit 8M0057383 See Kit for applications
line of sight so that a technician does not have to disassemble helm to plug into a
10 pin connection. Requires a harness from back of diagnostic port to a 10 pin FOB -MERCURY TDS (THEFT DETERRENT SYSTEM)
SmartCraft connection in the rigging.
SECURITY SYSTEMS

This section will include security devices that will help protect your
engine against theft..
MERCURY THEFT DETERRENT SYSTEM (TDS) STAGE 1

8M0056988
Fob replacement kit to activateTheft Deterrent System as part of the Mercury TDS
(Theft Deterrent System) Service replacement part
Used in kit 8M0057383 See Kit for applications
DOCKING STATION - THEFT - MERCURY TDS

8M0057383
Mercurys TDS improves boat and engine security and provides owner ease of
mind. The system immobolizes the engine until the Fob is inserted. (Limit to
approximately 2000 RPM) Once the Fob is inserted into the docking station; the
user will experience normal engine performance. Red or green lights on the
docking station indicates lock or unlock condition.
Can be used on ALL SmartCraft capable engines 40 HP and above (40‑60 4
stroke engines serial # 1C173334) all MCM DTS (2007 and newer ‑ serial
#1B381712) as well as Racing DTS (need Version 77 or newer MicroChi) ELECTRICAL
MERCURY TDS- PREMIUM 8M0056994
Docking station that communicates information as part of the Mercury TDS (Theft
Deterrent System) Service replacement part
Used in kit 8M0057383 See Kit for applications
WIRING HARNESS - THEFT - MERCURY TDS

98-8M0065146
Kit that allows tracking of a boat using a satellite communication system. This
system notifies the owner via email or text if the boat has left its location or
exceeded the user definiable Geo Fence (which can be set to notify if it leaves a 84-8M0056993
known good area or notify it it enters a known bad area). It also allows you to use Service replacement part.
a unique website that you can track the boat. Included in the kit is the immobilizer Main harness that connects docking station and module as part of the Mercury
that limits power if the fob is not engaged. (includes both the 8M0057383 TDS (Theft Deterrent System)
Immobilizer kit and the 8M0059374 Premium Satelite Tracking Kit). System is CE Used in kit 8M0057383 See Kit for applications
certified and can be installed in Europe.
Can be used on all 40‑60 4 stroke engines (serial # break is 1C173334) and the
new 150 4 Stroke engine. Can also be used on Verado and all MCM DTS 2007
( serial number 1B381712 and above) and newer as well as Racing DTS .
( Need Version 0077 Micro Chi or later)
