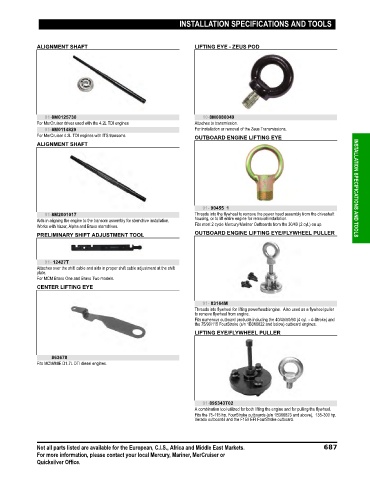

Page 694 - Quicksilver Accesories Guide 2019

INSTALLATION SPECIFICATIONS AND TOOLS

ALIGNMENT SHAFT LIFTING EYE - ZEUS POD

91-8M0125730 10-8M0080049
For MerCruiser drives used with the 4.2L TDI engines Attaches to transmission.
91-8M0114829 For installation or removal of the Zeus Transmissions.
For MerCruiser 4.2L TDI engines with ITS transoms OUTBOARD ENGINE LIFTING EYE
ALIGNMENT SHAFT

91- 90455 1 INSTALLATION SPECIFICATIONS AND TOOLS
91-8M2001017 Threads into the flywheel to remove the power head assembly from the driveshaft
Aids in aligning the engine to the transom assembly for sterndrive installation. housing, or to lift entire engine for removal/installation.
Works with Vazer, Alpha and Bravo sterndrives. Fits most 2 cycle Mercury/Mariner Outboards from the 30/40 (2 cyl.) on up.
PRELIMINARY SHIFT ADJUSTMENT TOOL OUTBOARD ENGINE LIFTING EYE/FLYWHEEL PULLER

91- 12427T
Attaches over the shift cable and aids in proper shift cable adjustment at the shift
plate.
For MCM Bravo One and Bravo Two models.
CENTER LIFTING EYE

91- 83164M
Threads into flywheel for lifting powerhead/engine. Also used as a flywheel puller
to remove flywheel from engine.
Fits numerous outboard products including the 40/45/50/60 (4 cyl. ‑ 4‑Stroke) and
the 75/90/115 FourStroke (s/n 1B366822 and below) outboard engines.
LIFTING EYE/FLYWHEEL PULLER

863678
Fits MCM/MIE D1.7L DTI diesel engines.

91-895343T02
A combination tool utilized for both lifting the engine and for pulling the flywheel.
Fits the 75‑115 hp. FourStroke outboards (s/n 1B366823 and above), 135‑300 hp.
Verado outboards and the F150 EFI FourStroke outboard.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 687
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
