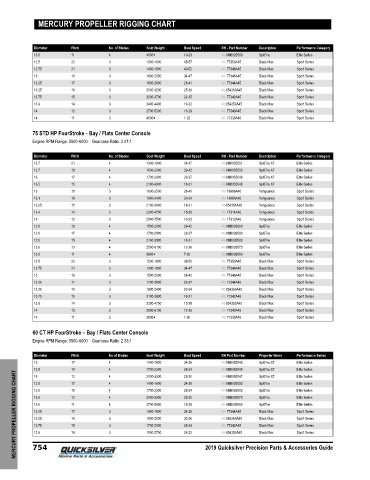

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
13.8 11 4 4000+ 10-23 48-8M8026560 SpitFire Elite Series
12.5 23 3 1300-1600 45-57 48- 77350A45 Black Max Sport Series
12.75 21 3 1400-1900 40-52 48- 77348A45 Black Max Sport Series
13 19 3 1600-2300 34-47 48- 77346A45 Black Max Sport Series
13.25 17 3 1800-2800 28-41 48- 77344A45 Black Max Sport Series
13.25 16 3 2000-3200 25-38 48-854360A45 Black Max Sport Series
13.75 15 3 2200-3700 22-35 48- 77342A45 Black Max Sport Series
13.9 14 3 2400-4400 19-32 48-854352A45 Black Max Sport Series
14 13 3 2700-5300 16-29 48- 77340A45 Black Max Sport Series
14 11 3 4000+ 1-22 48- 77338A45 Black Max Sport Series

75 STD HP FourStroke ‑ Bay / Flats Center Console
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1300-1900 34-47 48-8M0055551 SpitFire X7 Elite Series
12.7 19 4 1500-2300 29-42 48-8M0055550 SpitFire X7 Elite Series
13 17 4 1700-2900 23-37 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 2100-3900 18-31 48-8M0055548 SpitFire X7 Elite Series
13 18 3 1600-2500 26-40 48- 16988A46 Vengeance Sport Series
13.1 16 3 1900-3400 20-34 48- 16986A46 Vengeance Sport Series
13.25 15 3 2100-3900 18-31 48-854354A46 Vengeance Sport Series
13.4 14 3 2300-4700 15-28 48- 17314A46 Vengeance Sport Series
14 12 3 2900-7500 10-23 48- 17312A46 Vengeance Sport Series
12.8 19 4 1500-2300 29-42 48-8M8026600 SpitFire Elite Series
12.8 17 4 1700-2900 23-37 48-8M8026590 SpitFire Elite Series
12.8 15 4 2100-3900 18-31 48-8M8026580 SpitFire Elite Series
13.8 13 4 2500-6100 12-26 48-8M8026570 SpitFire Elite Series
13.8 11 4 3800+ 7-20 48-8M8026560 SpitFire Elite Series
12.5 23 3 1200-1600 39-52 48- 77350A45 Black Max Sport Series
12.75 21 3 1300-1900 34-47 48- 77348A45 Black Max Sport Series
13 19 3 1500-2300 29-42 48- 77346A45 Black Max Sport Series
13.25 17 3 1700-2900 23-37 48- 77344A45 Black Max Sport Series
13.25 16 3 1900-3400 20-34 48-854360A45 Black Max Sport Series
13.75 15 3 2100-3900 18-31 48- 77342A45 Black Max Sport Series
13.9 14 3 2300-4700 15-28 48-854352A45 Black Max Sport Series
14 13 3 2500-6100 12-26 48- 77340A45 Black Max Sport Series
14 11 3 3800+ 1-20 48- 77338A45 Black Max Sport Series

60 CT HP FourStroke – Bay / Flats Center Console
Engine RPM Range: 5500‑6000 Gearcase Ratio: 2.33:1

Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Series
13 17 4 1400-1800 34-38 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 4 4 4 1700-2300 28-34 48-8M0055548 SpitFire X7 Elite Series
MERCURY PROPELLER RIGGING CHART 754 13 4 4 3 3 3 3 2000-3300 23-30 2019 Quicksilver Precision Parts & Accessories Guide
13
Elite Series
48-8M0055547
23-30
SpitFire X7
2000-3300
14
12.8
1400-1800
SpitFire
17
34-38
Elite Series
48-8M8026590
12.8
28-34
1700-2300
48-8M8026580
15
Elite Series
SpitFire
Elite Series
48-8M8026570
SpitFire
13.8
48-8M8026560
18-25
11
13.8
SpitFire
Elite Series
2700-5400
Black Max
48- 77344A45
1400-1800
17
13.25
34-38
Sport Series
30-36
Black Max
16
1500-2000
48-854360A45
Sport Series
13.25
13.75
Black Max
Sport Series
1700-2300
48- 77342A45
28-34
15
Sport Series
1800-2700
14
13.9
Black Max
48-854352A45
26-32
