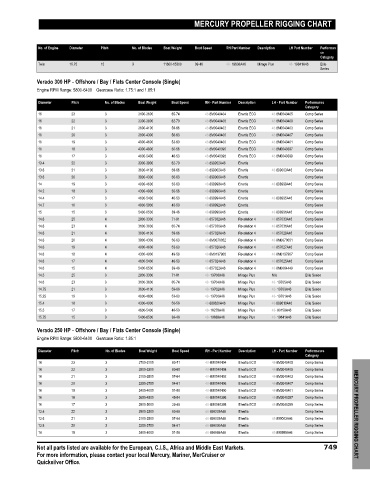

MERCURY PROPELLER RIGGING CHART

No. of Engine Diameter Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description LH Part Number Performan
ce
Category
Twin 15.75 15 3 11600-15300 39-46 48- 19838A46 Mirage Plus 48- 19841A46 Elite
Series
Verado 300 HP ‑ Offshore / Bay / Flats Center Console (Single)
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.75:1 and 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
16 23 3 3100-3600 65-74 48-8M0040404 Enertia ECO 48-8M0040405 Comp Series
16 22 3 3300-3800 62-70 48-8M0040408 Enertia ECO 48-8M0040409 Comp Series
16 21 3 3600-4100 59-66 48-8M0040402 Enertia ECO 48-8M0040403 Comp Series
16 20 3 3800-4300 56-63 48-8M0040406 Enertia ECO 48-8M0040407 Comp Series
16 19 3 4000-4600 53-60 48-8M0040400 Enertia ECO 48-8M0040401 Comp Series
16 18 3 4300-4900 50-56 48-8M0040396 Enertia ECO 48-8M0040397 Comp Series
16 17 3 4600-5400 46-53 48-8M0040398 Enertia ECO 48-8M0040399 Comp Series
13.4 22 3 3300-3800 62-70 48-899202A46 Enertia Comp Series
13.6 21 3 3600-4100 59-66 48-899002A46 Enertia 48-899003A46 Comp Series
13.8 20 3 3800-4300 56-63 48-899000A46 Enertia Comp Series
14 19 3 4000-4600 53-60 48-898998A46 Enertia 48-898999A46 Comp Series
14.2 18 3 4300-4900 50-56 48-898996A46 Enertia Comp Series
14.4 17 3 4600-5400 46-53 48-898994A46 Enertia 48-898995A46 Comp Series
14.7 16 3 4900-5800 43-50 48-898992A46 Enertia Comp Series
15 15 3 5400-6500 39-46 48-898990A46 Enertia 48-898991A46 Comp Series
14.6 25 4 2800-3300 71-81 48-857032A46 Revolution 4 48-857033A46 Comp Series
14.6 23 4 3100-3600 65-74 48-857030A46 Revolution 4 48-857031A46 Comp Series
14.6 21 4 3600-4100 59-66 48-857028A46 Revolution 4 48-857029A46 Comp Series
14.6 20 4 3800-4300 56-63 48-8M0070052 Revolution 4 48-8M0070051 Comp Series
14.6 19 4 4000-4600 53-60 48-857026A46 Revolution 4 48-857027A46 Comp Series
14.6 18 4 4300-4900 49-56 48-8M0137906 Revolution 4 48-8M0137907 Comp Series
14.6 17 4 4600-5400 46-53 48-857024A46 Revolution 4 48-857025A46 Comp Series
14.6 15 4 5400-6500 39-46 48-857022A46 Revolution 4 48-8M0064449 Comp Series
14.5 25 3 2800-3300 71-81 48- 13706A46 Mirage Plus N/A Elite Series
14.6 23 3 3100-3600 65-74 48- 13704A46 Mirage Plus 48- 13705A46 Elite Series
14.75 21 3 3600-4100 59-66 48- 13702A46 Mirage Plus 48- 13703A46 Elite Series
15.25 19 3 4000-4600 53-60 48- 13700A46 Mirage Plus 48- 13701A46 Elite Series
15.4 18 3 4300-4900 50-56 48-889620A46 Mirage Plus 48-889619A46 Elite Series
15.5 17 3 4600-5400 46-53 48- 18278A46 Mirage Plus 48- 90159A46 Elite Series
15.75 15 3 5400-6500 39-46 48- 19838A46 Mirage Plus 48- 19841A46 Elite Series
Verado 250 HP ‑ Offshore / Bay / Flats Center Console (Single)
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
16 23 3 2700-3100 63-71 48-8M0040404 Enertia ECO 48-8M0040405 Comp Series
16 22 3 2900-3300 60-68 48-8M0040408 Enertia ECO 48-8M0040409 Comp Series
16 21 3 3100-3500 57-64 48-8M0040402 Enertia ECO 48-8M0040403 Comp Series
16 20 3 3250-3750 54-61 48-8M0040406 Enertia ECO 48-8M0040407 Comp Series
16 19 3 3400-4000 51-58 48-8M0040400 Enertia ECO 48-8M0040401 Comp Series
16 18 3 3650-4500 45-54 48-8M0040396 Enertia ECO 48-8M0040397 Comp Series
16 17 3 3900-5000 39-49 48-8M0040398 Enertia ECO 48-8M0040399 Comp Series
13.4 22 3 2900-3300 60-68 48-899202A46 Enertia Comp Series MERCURY PROPELLER RIGGING CHART
13.6 21 3 3100-3500 57-64 48-899002A46 Enertia 48-899003A46 Comp Series
13.8 20 3 3250-3750 54-61 48-899000A46 Enertia Comp Series
14 19 3 3400-4000 51-58 48-898998A46 Enertia 48-898999A46 Comp Series

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 749
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
