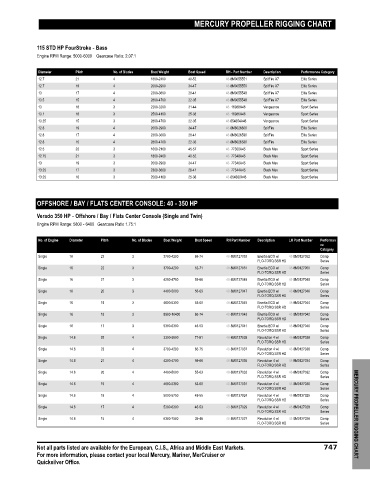

MERCURY PROPELLER RIGGING CHART

115 STD HP FourStroke ‑ Bass
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1800-2400 40-52 48-8M0055551 SpitFire X7 Elite Series
12.7 19 4 2000-2900 34-47 48-8M0055550 SpitFire X7 Elite Series
13 17 4 2300-3600 28-41 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 2800-4700 22-35 48-8M0055548 SpitFire X7 Elite Series
13 18 3 2200-3200 31-44 48- 16988A46 Vengeance Sport Series
13.1 16 3 2500-4100 25-38 48- 16986A46 Vengeance Sport Series
13.25 15 3 2800-4700 22-35 48-854354A46 Vengeance Sport Series
12.8 19 4 2000-2900 34-47 48-8M8026600 SpitFire Elite Series
12.8 17 4 2300-3600 28-41 48-8M8026590 SpitFire Elite Series
12.8 15 4 2800-4700 22-35 48-8M8026580 SpitFire Elite Series
12.5 23 3 1600-2100 45-57 48- 77350A45 Black Max Sport Series
12.75 21 3 1800-2400 40-52 48- 77348A45 Black Max Sport Series
13 19 3 2000-2900 34-47 48- 77346A45 Black Max Sport Series
13.25 17 3 2300-3600 28-41 48- 77344A45 Black Max Sport Series
13.25 16 3 2500-4100 25-38 48-854360A45 Black Max Sport Series

OFFSHORE / BAY / FLATS CENTER CONSOLE: 40 - 350 HP

Verado 350 HP ‑ Offshore / Bay / Flats Center Console (Single and Twin)
Engine RPM Range: 5800 ‑ 6400 Gearcase Ratio 1.75:1

No. of Engine Diameter Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description LH Part Number Performan
ce
Category
Single 16 23 3 3700-4200 65-74 48-8M0127053 Enertia ECO w/ 48-8M0127052 Comp
FLO-TORQ SSR HD Series
Single 16 22 3 3700-4200 62-71 48-8M0127051 Enertia ECO w/ 48-8M0127050 Comp
FLO-TORQ SSR HD Series
Single 16 21 3 4200-4700 59-66 48-8M0127049 Enertia ECO w/ 48-8M0127048 Comp
FLO-TORQ SSR HD Series
Single 16 20 3 4400-5000 55-63 48-8M0127047 Enertia ECO w/ 48-8M0127046 Comp
FLO-TORQ SSR HD Series
Single 16 19 3 4600-5300 53-60 48-8M0127045 Enertia ECO w/ 48-8M0127044 Comp
FLO-TORQ SSR HD Series
Single 16 18 3 8900-10400 65-74 48-8M0127043 Enertia ECO w/ 48-8M0127042 Comp
FLO-TORQ SSR HD Series
Single 16 17 3 5300-6300 46-53 48-8M0127041 Enertia ECO w/ 48-8M0127040 Comp
FLO-TORQ SSR HD Series
Single 14.6 25 4 3300-3800 71-81 48-8M0127039 Revolution 4 w/ 48-8M0127038 Comp
FLO-TORQ SSR HD Series
Single 14.6 23 4 3700-4200 65-75 48-8M0127037 Revolution 4 w/ 48-8M0127036 Comp
FLO-TORQ SSR HD Series
Single 14.6 21 4 4200-4700 59-66 48-8M0127035 Revolution 4 w/ 48-8M0127034 Comp
FLO-TORQ SSR HD Series
Single 14.6 20 4 4400-5000 55-63 48-8M0127033 Revolution 4 w/ 48-8M0127032 Comp
FLO-TORQ SSR HD Series
Single 14.6 19 4 4600-5300 53-60 48-8M0127031 Revolution 4 w/ 48-8M0127030 Comp
FLO-TORQ SSR HD Series
Single 14.6 18 4 5000-5750 49-55 48-8M0137924 Revolution 4 w/ 48-8M0137925 Comp
FLO-TORQ SSR HD Series
Single 14.6 17 4 5300-6300 46-53 48-8M0127029 Revolution 4 w/ 48-8M0127028 Comp
FLO-TORQ SSR HD Series
Single 14.6 15 4 6300-7500 39-46 48-8M0127027 Revolution 4 w/ 48-8M0127026 Comp MERCURY PROPELLER RIGGING CHART
FLO-TORQ SSR HD Series

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 747
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
