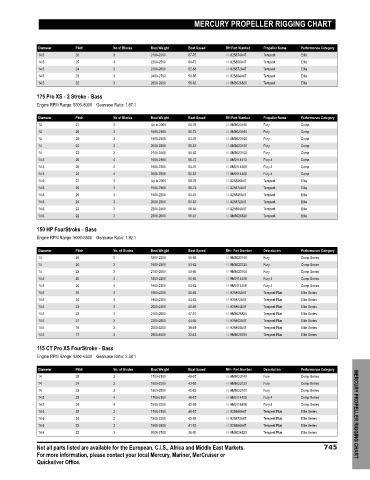

Page 752 - Quicksilver Accesories Guide 2019

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Category
14.6 26 3 2100-2300 67-75 48-825874A47 Tempest Elite
14.6 25 3 2200-2500 64-72 48-825866A47 Tempest Elite
14.6 24 3 2300-2600 62-68 48-825872A47 Tempest Elite
14.6 23 3 2400-2700 59-65 48-825864A47 Tempest Elite
14.6 22 3 2600-2900 56-62 48-8M8026820 Tempest Elite
175 Pro XS ‑ 2 Stroke ‑ Bass
Engine RPM Range: 5500‑6000 Gearcase Ratio: 1.87:1

Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Category
14 27 3 Up to 2000 68-76 48-8M8023180 Fury Comp
14 26 3 1900-2100 66-73 48-8M8023160 Fury Comp
14 25 3 1900-2200 63-70 48-8M8023140 Fury Comp
14 24 3 2000-2300 60-67 48-8M8023120 Fury Comp
14 23 3 2100-2400 55-62 48-8M8023100 Fury Comp
14.5 26 4 1900-2100 66-73 48-8M0114410 Fury 4 Comp
14.5 25 4 1900-2200 63-70 48-8M0114409 Fury 4 Comp
14.5 24 4 2000-2300 60-67 48-8M0114408 Fury 4 Comp
14.6 27 3 Up to 2000 68-76 48-825868A47 Tempest Elite
14.6 26 3 1900-2100 66-73 48-825874A47 Tempest Elite
14.6 25 3 1900-2200 63-70 48-825866A47 Tempest Elite
14.6 24 3 2000-2300 60-67 48-825872A47 Tempest Elite
14.6 23 3 2200-2400 58-64 48-825864A47 Tempest Elite
14.6 22 3 2300-2600 55-61 48-8M8026820 Tempest Elite

150 HP FourStroke ‑ Bass
Engine RPM Range: 5000‑5800 Gearcase Ratio: 1.92:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14 25 3 1800-2200 55-65 48-8M8023140 Fury Comp Series
14 24 3 1900-2300 53-62 48-8M8023120 Fury Comp Series
14 23 3 2100-2500 50-60 48-8M8023100 Fury Comp Series
14.5 25 4 1800-2200 55-65 48-8M0114409 Fury 4 Comp Series
14.5 24 4 1900-2300 53-62 48-8M0114408 Fury 4 Comp Series
14.6 25 3 1800-2200 55-65 48-825866A47 Tempest Plus Elite Series
14.6 24 3 1900-2300 53-62 48-825872A47 Tempest Plus Elite Series
14.6 23 3 2000-2400 50-60 48-825864A47 Tempest Plus Elite Series
14.6 22 3 2100-2600 47-57 48-8M8026820 Tempest Plus Elite Series
14.6 21 3 2200-2800 44-54 48-825862A47 Tempest Plus Elite Series
14.6 19 3 2500-3200 39-49 48-825860A47 Tempest Plus Elite Series
14.6 17 3 2900-4000 32-43 48-8M8026790 Tempest Plus Elite Series
115 CT Pro XS FourStroke ‑ Bass
Engine RPM Range: 5300‑6300 Gearcase Ratio: 2.38:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14 25 3 1700-2100 46-57 48-8M8023140 Fury Comp Series
14 24 3 1800-2300 43-55 48-8M8023120 Fury Comp Series
14 23 3 1900-2500 40-53 48-8M8023100 Fury Comp Series
14.5 25 4 1700-2100 46-57 48-8M0114409 Fury 4 Comp Series
14.5 24 4 1800-2300 43-55 48-8M0114408 Fury 4 Comp Series
14.6 25 3 1700-2100 46-57 48-825866A47 Tempest Plus Elite Series MERCURY PROPELLER RIGGING CHART
14.6 24 3 1800-2300 43-55 48-825872A47 Tempest Plus Elite Series
14.6 23 3 1900-2400 41-52 48-825864A47 Tempest Plus Elite Series
14.6 22 3 2000-2700 38-50 48-8M8026820 Tempest Plus Elite Series

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 745
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
