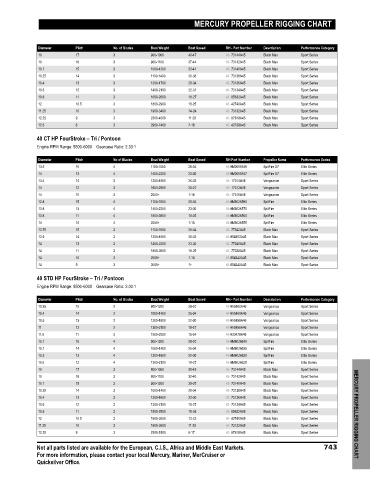

Page 750 - Quicksilver Accesories Guide 2019

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
10 17 3 900-1000 40-47 48- 73144A45 Black Max Sport Series
10 16 3 900-1100 37-44 48- 73142A45 Black Max Sport Series
10.1 15 3 1000-1300 33-41 48- 73140A45 Black Max Sport Series
10.25 14 3 1100-1400 30-38 48- 73138A45 Black Max Sport Series
10.4 13 3 1300-1700 26-34 48- 73136A45 Black Max Sport Series
10.6 12 3 1400-2100 22-31 48- 73134A45 Black Max Sport Series
10.8 11 3 1600-2600 18-27 48- 85632A45 Black Max Sport Series
12 10.5 3 1800-2900 16-25 48- 42740A45 Black Max Sport Series
11.25 10 3 1900-3400 14-24 48- 73132A45 Black Max Sport Series
12.25 9 3 2300-4500 11-20 48- 87818A45 Black Max Sport Series
12.5 8 3 2900-7400 7-16 48- 42738A45 Black Max Sport Series

40 CT HP FourStroke – Tri / Pontoon
Engine RPM Range: 5500‑6000 Gearcase Ratio: 2.33:1
Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Series
13.5 15 4 1100-1600 28-34 48-8M0055548 SpitFire X7 Elite Series
14 13 4 1400-2200 23-30 48-8M0055547 SpitFire X7 Elite Series
13.4 14 3 1200-1800 26-32 48- 17314A46 Vengeance Sport Series
14 12 3 1600-2800 20-27 48- 17312A46 Vengeance Sport Series
14 10 3 2000+ 1-18 48- 17310A46 Vengeance Sport Series
12.8 15 4 1100-1600 28-34 48-8M8026580 SpitFire Elite Series
13.8 13 4 1400-2200 23-30 48-8M8026570 SpitFire Elite Series
13.8 11 4 1800-3600 18-25 48-8M8026560 SpitFire Elite Series
14 10 4 2000+ 1-18 48-8M8026555 SpitFire Elite Series
13.75 15 3 1100-1600 28-34 48- 77342A45 Black Max Sport Series
13.9 14 3 1200-1800 26-32 48-854352A45 Black Max Sport Series
14 13 3 1400-2200 23-30 48- 77340A45 Black Max Sport Series
14 11 3 1800-3600 18-25 48- 77338A45 Black Max Sport Series
14 10 3 2000+ 1-18 48-854342A45 Black Max Sport Series
14 9 3 3000+ 1+ 48-854340A45 Black Max Sport Series

40 STD HP FourStroke – Tri / Pontoon
Engine RPM Range: 5500‑6000 Gearcase Ratio: 2.00:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
10.25 15 3 900-1200 29-37 48-855862A46 Vengeance Sport Series
10.4 14 3 1000-1400 25-34 48-855860A46 Vengeance Sport Series
10.5 13 3 1200-1600 22-30 48-855858A46 Vengeance Sport Series
11 12 3 1300-2100 18-27 48-855856A46 Vengeance Sport Series
11.6 11 3 1500-2500 15-24 48-823478A46 Vengeance Sport Series
10.1 15 4 900-1200 29-37 48-8M8026640 SpitFire Elite Series
10.1 14 4 1000-1400 25-34 48-8M8026635 SpitFire Elite Series
10.3 13 4 1200-1600 22-30 48-8M8026630 SpitFire Elite Series
10.6 12 4 1300-2100 18-27 48-8M8026625 SpitFire Elite Series
10 17 3 800-1000 35-43 48- 73144A45 Black Max Sport Series
10 16 3 800-1100 32-40 48- 73142A45 Black Max Sport Series
10.1 15 3 900-1200 29-37 48- 73140A45 Black Max Sport Series
10.25 14 3 1000-1400 25-34 48- 73138A45 Black Max Sport Series
10.4 13 3 1200-1600 22-30 48- 73136A45 Black Max Sport Series
10.6 12 3 1300-2100 18-27 48- 73134A45 Black Max Sport Series
10.8 11 3 1500-2500 15-24 48- 85632A45 Black Max Sport Series MERCURY PROPELLER RIGGING CHART
12 10.5 3 1600-3000 13-22 48- 42740A45 Black Max Sport Series
11.25 10 3 1800-3600 11-20 48- 73132A45 Black Max Sport Series
12.25 9 3 2200-5100 8-17 48- 87818A45 Black Max Sport Series

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 743
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
