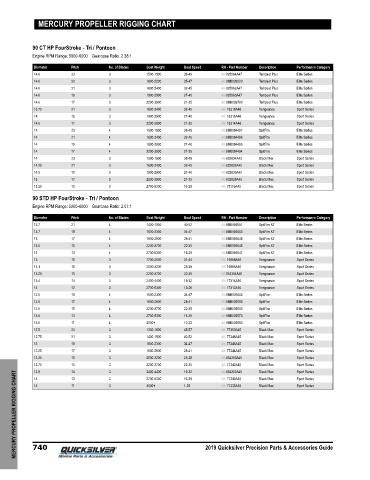

MERCURY PROPELLER RIGGING CHART

90 CT HP FourStroke ‑ Tri / Pontoon
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.38:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.6 23 3 1500-1900 38-49 48-825864A47 Tempest Plus Elite Series
14.6 22 3 1600-2200 35-47 48-8M8026820 Tempest Plus Elite Series
14.6 21 3 1600-2400 32-45 48-825862A47 Tempest Plus Elite Series
14.6 19 3 1900-2900 27-40 48-825860A47 Tempest Plus Elite Series
14.6 17 3 2200-3900 21-35 48-8M8026790 Tempest Plus Elite Series
13.75 21 3 1600-2400 32-45 48- 16318A46 Vengeance Sport Series
14 19 3 1900-2900 27-40 48- 16316A46 Vengeance Sport Series
14.5 17 3 2200-3900 21-35 48- 16314A46 Vengeance Sport Series
14 23 4 1500-1900 38-49 48-8M0084497 SpitFire Elite Series
14 21 4 1600-2400 32-45 48-8M0084496 SpitFire Elite Series
14 19 4 1900-2900 27-40 48-8M0084495 SpitFire Elite Series
14 17 4 2200-3900 21-35 48-8M0084494 SpitFire Elite Series
14 23 3 1500-1900 38-49 48-832834A45 Black Max Sport Series
14.25 21 3 1600-2400 32-45 48-832832A45 Black Max Sport Series
14.5 19 3 1900-2900 27-40 48-832830A45 Black Max Sport Series
15 17 3 2200-3900 21-35 48-832828A45 Black Max Sport Series
15.25 15 3 2700-5300 16-29 48- 78116A45 Black Max Sport Series
90 STD HP FourStroke ‑ Tri / Pontoon
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1400-1900 40-52 48-8M0055551 SpitFire X7 Elite Series
12.7 19 4 1600-2300 34-47 48-8M0055550 SpitFire X7 Elite Series
13 17 4 1800-2800 28-41 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 2200-3700 22-35 48-8M0055548 SpitFire X7 Elite Series
14 13 4 2700-5300 16-29 48-8M0055547 SpitFire X7 Elite Series
13 18 3 1700-2500 31-44 48- 16988A46 Vengeance Sport Series
13.1 16 3 2000-3200 25-38 48- 16986A46 Vengeance Sport Series
13.25 15 3 2200-3700 22-35 48-854354A46 Vengeance Sport Series
13.4 14 3 2400-4400 19-32 48- 17314A46 Vengeance Sport Series
14 12 3 2700-5300 13-26 48- 17312A46 Vengeance Sport Series
12.8 19 4 1600-2300 34-47 48-8M8026600 SpitFire Elite Series
12.8 17 4 1800-2800 28-41 48-8M8026590 SpitFire Elite Series
12.8 15 4 2200-3700 22-35 48-8M8026580 SpitFire Elite Series
13.8 13 4 2700-5300 16-29 48-8M8026570 SpitFire Elite Series
13.8 11 4 4000+ 10-23 48-8M8026560 SpitFire Elite Series
12.5 23 3 1300-1600 45-57 48- 77350A45 Black Max Sport Series
12.75 21 3 1400-1900 40-52 48- 77348A45 Black Max Sport Series
13 19 3 1600-2300 34-47 48- 77346A45 Black Max Sport Series
13.25 17 3 1800-2800 28-41 48- 77344A45 Black Max Sport Series
13.25 16 3 2000-3200 25-38 48-854360A45 Black Max Sport Series
13.75 15 3 3 3 3 2200-3700 22-35 48- 77342A45 Black Max Sport Series
14
48-854352A45
Black Max
2400-4400
13.8
19-32
Sport Series
MERCURY PROPELLER RIGGING CHART 740 2019 Quicksilver Precision Parts & Accessories Guide
48- 77340A45
Sport Series
Black Max
16-29
2700-5300
13
14
Sport Series
Black Max
14
4000+
1-22
11
48- 77338A45
