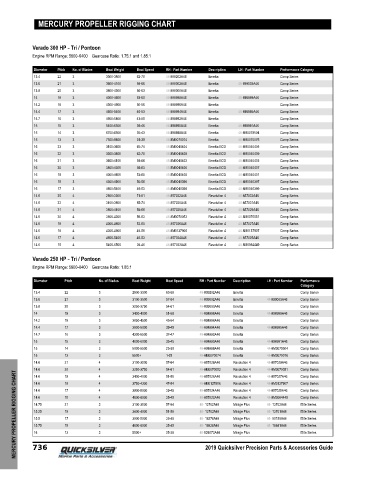

MERCURY PROPELLER RIGGING CHART

Verado 300 HP ‑ Tri / Pontoon
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.75:1 and 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance Category
13.4 22 3 3300-3800 62-70 48-899202A46 Enertia Comp Series
13.6 21 3 3600-4100 59-66 48-899002A46 Enertia 48-899003A46 Comp Series
13.8 20 3 3800-4300 56-63 48-899000A46 Enertia Comp Series
14 19 3 4000-4600 53-60 48-898998A46 Enertia 48-898999A46 Comp Series
14.2 18 3 4300-4900 50-56 48-898996A46 Enertia Comp Series
14.4 17 3 4600-5400 46-53 48-898994A46 Enertia 48-898995A46 Comp Series
14.7 16 3 4900-5800 43-50 48-898992A46 Enertia Comp Series
15 15 3 5400-6500 39-46 48-898990A46 Enertia 48-898991A46 Comp Series
15 14 3 6700-8500 35-43 48-898988A46 Enertia 48-8M0079504 Comp Series
15 13 3 7500-9800 31-39 48-8M0070074 Enertia 48-8M0070076 Comp Series
16 23 3 3100-3600 65-74 48-8M0040404 Enertia ECO 48-8M0040405 Comp Series
16 22 3 3300-3800 62-70 48-8M0040408 Enertia ECO 48-8M0040409 Comp Series
16 21 3 3600-4100 59-66 48-8M0040402 Enertia ECO 48-8M0040403 Comp Series
16 20 3 3800-4300 56-63 48-8M0040406 Enertia ECO 48-8M0040407 Comp Series
16 19 3 4000-4600 53-60 48-8M0040400 Enertia ECO 48-8M0040401 Comp Series
16 18 3 4300-4900 50-56 48-8M0040396 Enertia ECO 48-8M0040397 Comp Series
16 17 3 4600-5400 46-53 48-8M0040398 Enertia ECO 48-8M0040399 Comp Series
14.6 25 4 2800-3300 71-81 48-857032A46 Revolution 4 48-857033A46 Comp Series
14.6 23 4 3100-3600 65-74 48-857030A46 Revolution 4 48-857031A46 Comp Series
14.6 21 4 3600-4100 59-66 48-857028A46 Revolution 4 48-857029A46 Comp Series
14.6 20 4 3800-4300 56-63 48-8M0070052 Revolution 4 48-8M0070051 Comp Series
14.6 19 4 4000-4600 53-60 48-857026A46 Revolution 4 48-857027A46 Comp Series
14.6 18 4 4300-4900 49-56 48-8M0137906 Revolution 4 48-8M0137907 Comp Series
14.6 17 4 4600-5400 46-53 48-857024A46 Revolution 4 48-857025A46 Comp Series
14.6 15 4 5400-6500 39-46 48-857022A46 Revolution 4 48-8M0064449 Comp Series

Verado 250 HP ‑ Tri / Pontoon
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.4 22 3 2900-3300 60-68 48-899202A46 Enertia Comp Series
13.6 21 3 3100-3500 57-64 48-899002A46 Enertia 48-899003A46 Comp Series
13.8 20 3 3250-3750 54-61 48-899000A46 Enertia Comp Series
14 19 3 3400-4000 51-58 48-898998A46 Enertia 48-898999A46 Comp Series
14.2 18 3 3650-4500 45-54 48-898996A46 Enertia Comp Series
14.4 17 3 3900-5000 39-49 48-898994A46 Enertia 48-898995A46 Comp Series
14.7 16 3 4300-5500 37-47 48-898992A46 Enertia Comp Series
15 15 3 4600-6000 35-45 48-898990A46 Enertia 48-898991A46 Comp Series
15 14 3 5000-5500 25-38 48-898988A46 Enertia 48-8M0079504 Comp Series
15 13 3 5500+ 1-28 48-8M0070074 Enertia 48-8M0070076 Comp Series
14.6 21 4 3100-3500 57-64 48-857028A46 Revolution 4 48-857029A46 Comp Series
14.6 20 4 4 4 4 3250-3750 54-61 48-8M0070052 Revolution 4 48-8M0070051 Comp Series
MERCURY PROPELLER RIGGING CHART 736 15 4 3 3 3 3 3 4600-6000 35-45 48-857022A46 Revolution 4 48-8M0064449 Comp Series
19
Revolution 4
51-58
48-857026A46
3400-4000
Comp Series
14.6
48-857027A46
Comp Series
3750-4300
Revolution 4
48-8M0137907
48-8M0137906
47-54
18
14.6
Revolution 4
17
39-49
Comp Series
48-857025A46
14.6
3900-5000
48-857024A46
14.6
48- 13702A46
14.75
48- 13703A46
Elite Series
Mirage Plus
21
57-64
3100-3500
19
48- 13701A46
Mirage Plus
48- 13703A46
3400-4000
15.25
Elite Series
51-58
3900-5000
Mirage Plus
17
48- 18278A46
39-49
Elite Series
15.5
48- 90159A46
15
48- 19841A46
Elite Series
48- 19838A46
35-45
Mirage Plus
4600-6000
15.75
Elite Series
25-38
16
13
5500+
Mirage Plus

48-826072A46
