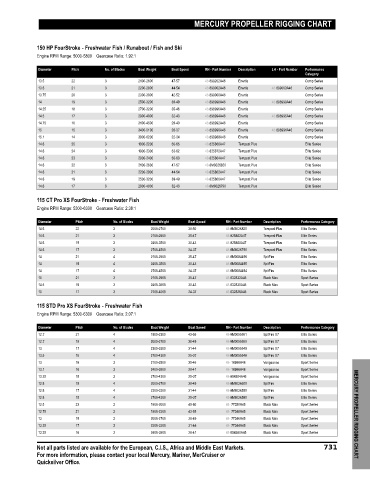

MERCURY PROPELLER RIGGING CHART

150 HP FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5000‑5800 Gearcase Ratio: 1.92:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.5 22 3 2100-2600 47-57 48-899202A46 Enertia Comp Series
13.6 21 3 2200-2800 44-54 48-899002A46 Enertia 48-899003A46 Comp Series
13.75 20 3 2300-3000 42-52 48-899000A46 Enertia Comp Series
14 19 3 2500-3200 39-49 48-898998A46 Enertia 48-898999A46 Comp Series
14.25 18 3 2700-3200 35-46 48-898996A46 Enertia Comp Series
14.5 17 3 2900-4000 32-43 48-898994A46 Enertia 48-898995A46 Comp Series
14.75 16 3 3100-4500 29-40 48-898992A46 Enertia Comp Series
15 15 3 3400-5100 26-37 48-898990A46 Enertia 48-898991A46 Comp Series
15.1 14 3 3800-6200 22-34 48-898988A46 Enertia Comp Series
14.6 25 3 1800-2200 55-65 48-825866A47 Tempest Plus Elite Series
14.6 24 3 1900-2300 53-62 48-825872A47 Tempest Plus Elite Series
14.6 23 3 2000-2400 50-60 48-825864A47 Tempest Plus Elite Series
14.6 22 3 2100-2600 47-57 48-8M8026820 Tempest Plus Elite Series
14.6 21 3 2200-2800 44-54 48-825862A47 Tempest Plus Elite Series
14.6 19 3 2500-3200 39-49 48-825860A47 Tempest Plus Elite Series
14.6 17 3 2900-4000 32-43 48-8M8026790 Tempest Plus Elite Series
115 CT Pro XS FourStroke ‑ Freshwater Fish
Engine RPM Range: 5300‑6300 Gearcase Ratio: 2.38:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.6 22 3 2000-2700 38-50 48-8M8026820 Tempest Plus Elite Series
14.6 21 3 2100-2900 35-47 48-825862A47 Tempest Plus Elite Series
14.6 19 3 2400-3500 30-42 48-825860A47 Tempest Plus Elite Series
14.6 17 3 2700-4500 24-37 48-8M8026790 Tempest Plus Elite Series
14 21 4 2100-2900 35-47 48-8M0084496 SpitFire Elite Series
14 19 4 2400-3500 30-42 48-8M0084495 SpitFire Elite Series
14 17 4 2700-4500 24-37 48-8M0084494 SpitFire Elite Series
15 21 3 2100-2900 35-47 48-832832A45 Black Max Sport Series
14.5 19 3 2400-3500 30-42 48-832830A45 Black Max Sport Series
15 17 3 2700-4500 24-37 48-832828A45 Black Max Sport Series
115 STD Pro XS FourStroke ‑ Freshwater Fish
Engine RPM Range: 5300‑6300 Gearcase Ratio: 2.07:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1800-2300 43-55 48-8M0055551 SpitFire X7 Elite Series
12.7 19 4 2000-2700 38-49 48-8M0055550 SpitFire X7 Elite Series
13 17 4 2300-3300 31-44 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 2700-4300 25-37 48-8M0055548 SpitFire X7 Elite Series
13 18 3 2100-2900 35-46 48- 16988A46 Vengeance Sport Series
13.1 16 3 2400-3800 28-41 48- 16986A46 Vengeance Sport Series
13.25 15 3 2700-4300 25-37 48-854354A46 Vengeance Sport Series
12.8 19 4 2000-2700 38-49 48-8M8026600 SpitFire Elite Series
12.8 17 4 2300-3300 31-44 48-8M8026590 SpitFire Elite Series
12.8 15 4 2700-4300 25-37 48-8M8026580 SpitFire Elite Series
12.5 23 3 1600-2000 49-60 48- 77350A45 Black Max Sport Series
12.75 21 3 1800-2300 43-55 48- 77348A45 Black Max Sport Series MERCURY PROPELLER RIGGING CHART
13 19 3 2000-2700 38-49 48- 77346A45 Black Max Sport Series
13.25 17 3 2300-3300 31-44 48- 77344A45 Black Max Sport Series
13.25 16 3 2400-3800 28-41 48-854360A45 Black Max Sport Series

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 731
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
