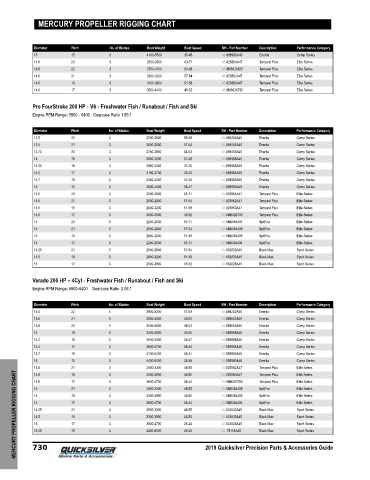

Page 737 - Quicksilver Accesories Guide 2019

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
15 15 3 4100-5500 35-45 48-898990A46 Enertia Comp Series
14.6 23 3 2500-2800 63-71 48-825864A47 Tempest Plus Elite Series
14.6 22 3 2700-3100 60-68 48-8M8026820 Tempest Plus Elite Series
14.6 21 3 2800-3200 57-64 48-825862A47 Tempest Plus Elite Series
14.6 19 3 3100-3600 51-58 48-825860A47 Tempest Plus Elite Series
14.6 17 3 3500-4100 45-52 48-8M8026790 Tempest Plus Elite Series

Pro FourStroke 200 HP ‑ V6 ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5800 ‑ 6400 Gearcase Ratio 1.85:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
13.5 22 3 2300-2600 59-68 48-899202A46 Enertia Comp Series
13.6 21 3 2500-2800 57-64 48-899002A46 Enertia Comp Series
13.75 20 3 2750-2950 54-63 48-899000A46 Enertia Comp Series
14 19 3 2800-3200 51-58 48-898998A46 Enertia Comp Series
14.25 18 3 2950-3450 47-55 48-898996A46 Enertia Comp Series
14.5 17 3 3100-3700 45-52 48-898994A46 Enertia Comp Series
14.7 16 3 3350-4250 41-50 48-898992A46 Enertia Comp Series
15 15 3 3600-4400 38-47 48-898990A46 Enertia Comp Series
14.6 23 3 2200-2500 63-71 48-825864A47 Tempest Plus Elite Series
14.6 21 3 2500-2800 57-64 48-825862A47 Tempest Plus Elite Series
14.6 19 3 2800-3200 51-58 48-825860A47 Tempest Plus Elite Series
14.6 17 3 3000-3500 45-52 48-8M8026790 Tempest Plus Elite Series
14 23 3 2200-2500 63-71 48-8M0084497 SpitFire Elite Series
14 21 3 2500-2800 57-64 48-8M0084496 SpitFire Elite Series
14 19 3 2800-3200 51-58 48-8M0084495 SpitFire Elite Series
14 17 3 2200-2500 63-71 48-8M0084494 SpitFire Elite Series
14.25 21 3 2500-2800 57-64 48-832832A45 Black Max Sport Series
14.5 19 3 2800-3200 51-58 48-832830A45 Black Max Sport Series
15 17 3 2500-2800 45-52 48-832828A45 Black Max Sport Series

Verado 200 HP – 4Cyl ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5800‑6400 Gearcase Ratio: 2.08:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
13.4 22 3 2800-3200 51-58 48-899202A46 Enertia Comp Series
13.6 21 3 2900-3300 49-55 48-899002A46 Enertia Comp Series
13.8 20 3 3000-3600 46-53 48-899000A46 Enertia Comp Series
14 19 3 3300-3900 43-50 48-898998A46 Enertia Comp Series
14.2 18 3 3500-4300 39-47 48-898996A46 Enertia Comp Series
14.4 17 3 3800-4700 36-44 48-898994A46 Enertia Comp Series
14.7 16 3 4100-5200 33-41 48-898992A46 Enertia Comp Series
15 15 3 4400-6000 29-38 48-898990A46 Enertia Comp Series
14.6 21 3 3 3 3 2900-3300 49-55 48-825862A47 Tempest Plus Elite Series
MERCURY PROPELLER RIGGING CHART 730 19 3 3 3 3 3 3 3300-3900 43-50 2019 Quicksilver Precision Parts & Accessories Guide
Elite Series
19
14.6
3300-3900
48-825860A47
43-50
Tempest Plus
3800-4700
14.6
Elite Series
17
36-44
Tempest Plus
48-8M8026790
SpitFire
49-55
2900-3300
14
Elite Series
21
48-8M0084496
14
Elite Series
48-8M0084495
SpitFire
48-8M0084494
36-44
SpitFire
17
Elite Series
14
3800-4700
Sport Series
48-832832A45
Black Max
49-55
14.25
21
2900-3300
Black Max
19
3300-3900
43-50
Sport Series
48-832830A45
14.5
Sport Series
Black Max
15
36-44
3800-4700
17
48-832828A45
Sport Series
29-38
48- 78116A45
15
Black Max
4400-6000
15.25
