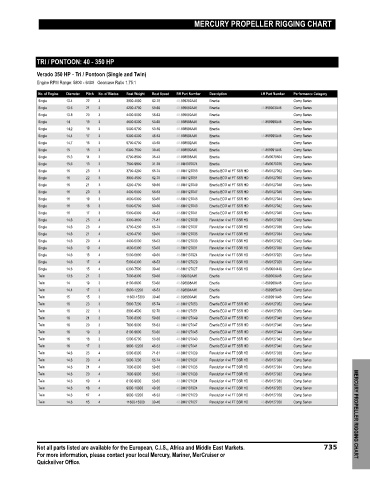

MERCURY PROPELLER RIGGING CHART

TRI / PONTOON: 40 - 350 HP

Verado 350 HP ‑ Tri / Pontoon (Single and Twin)
Engine RPM Range: 5800 ‑ 6400 Gearcase Ratio 1.75:1

No. of Engine Diameter Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description LH Part Number Performance Category
Single 13.4 22 3 3900-4500 62-70 48-899202A46 Enertia Comp Series
Single 13.6 21 3 4200-4700 59-66 48-899002A46 Enertia 48-899003A46 Comp Series
Single 13.8 20 3 4400-5000 56-63 48-899000A46 Enertia Comp Series
Single 14 19 3 4600-5300 53-60 48-898998A46 Enertia 48-898999A46 Comp Series
Single 14.2 18 3 5000-5700 50-56 48-898996A46 Enertia Comp Series
Single 14.4 17 3 5300-6300 46-53 48-898994A46 Enertia 48-898995A46 Comp Series
Single 14.7 16 3 5700-6700 43-50 48-898992A46 Enertia Comp Series
Single 15 15 3 6300-7500 39-46 48-898990A46 Enertia 48-898991A46 Comp Series
Single 15.3 14 3 6700-8500 35-43 48-898988A46 Enertia 48-8M0079504 Comp Series
Single 15.6 13 3 7500-9800 31-39 48-8M0070074 Enertia 48-8M0070076 Comp Series
Single 16 23 3 3700-4200 65-74 48-8M0127053 Enertia ECO w/ FT SSR HD 48-8M0127052 Comp Series
Single 16 22 3 3900-4500 62-70 48-8M0127051 Enertia ECO w/ FT SSR HD 48-8M0127050 Comp Series
Single 16 21 3 4200-4700 59-66 48-8M0127049 Enertia ECO w/ FT SSR HD 48-8M0127048 Comp Series
Single 16 20 3 4400-5000 56-63 48-8M0127047 Enertia ECO w/ FT SSR HD 48-8M0127046 Comp Series
Single 16 19 3 4600-5300 53-60 48-8M0127045 Enertia ECO w/ FT SSR HD 48-8M0127044 Comp Series
Single 16 18 3 5000-5700 50-56 48-8M0127043 Enertia ECO w/ FT SSR HD 48-8M0127042 Comp Series
Single 16 17 3 5300-6300 46-53 48-8M0127041 Enertia ECO w/ FT SSR HD 48-8M0127040 Comp Series
Single 14.6 25 4 3300-3800 71-81 48-8M0127039 Revolution 4 w/ FT SSR HD 48-8M0127038 Comp Series
Single 14.6 23 4 3700-4200 65-74 48-8M0127037 Revolution 4 w/ FT SSR HD 48-8M0127036 Comp Series
Single 14.6 21 4 4200-4700 59-66 48-8M0127035 Revolution 4 w/ FT SSR HD 48-8M0127034 Comp Series
Single 14.6 20 4 4400-5000 56-63 48-8M0127033 Revolution 4 w/ FT SSR HD 48-8M0127032 Comp Series
Single 14.6 19 4 4600-5300 53-60 48-8M0127031 Revolution 4 w/ FT SSR HD 48-8M0127030 Comp Series
Single 14.6 18 4 5000-5800 49-56 48-8M0137924 Revolution 4 w/ FT SSR HD 48-8M0137925 Comp Series
Single 14.6 17 4 5300-6300 46-53 48-8M0127029 Revolution 4 w/ FT SSR HD 48-8M0127028 Comp Series
Single 14.6 15 4 6300-7500 39-46 48-8M0127027 Revolution 4 w/ FT SSR HD 48-8M0064449 Comp Series
Twin 13.6 21 3 7000-8300 59-66 48-899002A46 Enertia 48-899003A46 Comp Series
Twin 14 19 3 8100-9600 53-60 48-898998A46 Enertia 48-898999A46 Comp Series
Twin 14.4 17 3 9600-12200 46-53 48-898994A46 Enertia 48-898995A46 Comp Series
Twin 15 15 3 11600-15300 39-46 48-898990A46 Enertia 48-898991A46 Comp Series
Twin 16 23 3 5800-7200 65-74 48-8M0127053 Enertia ECO w/ FT SSR HD 48-8M0127052 Comp Series
Twin 16 22 3 3900-4500 62-70 48-8M0127051 Enertia ECO w/ FT SSR HD 48-8M0127050 Comp Series
Twin 16 21 3 7000-8300 59-66 48-8M0127049 Enertia ECO w/ FT SSR HD 48-8M0127048 Comp Series
Twin 16 20 3 7600-9000 56-63 48-8M0127047 Enertia ECO w/ FT SSR HD 48-8M0127046 Comp Series
Twin 16 19 3 8100-9600 53-60 48-8M0127045 Enertia ECO w/ FT SSR HD 48-8M0127044 Comp Series
Twin 16 18 3 5000-5700 50-56 48-8M0127043 Enertia ECO w/ FT SSR HD 48-8M0127042 Comp Series
Twin 16 17 3 9600-12200 46-53 48-8M0127041 Enertia ECO w/ FT SSR HD 48-8M0127040 Comp Series
Twin 14.6 25 4 5000-6300 71-81 48-8M0127039 Revolution 4 w/ FT SSR HD 48-8M0127038 Comp Series
Twin 14.6 23 4 5800-7200 65-74 48-8M0127037 Revolution 4 w/ FT SSR HD 48-8M0127036 Comp Series
Twin 14.6 21 4 7000-8300 59-66 48-8M0127035 Revolution 4 w/ FT SSR HD 48-8M0127034 Comp Series
Twin 14.6 20 4 7600-9000 56-63 48-8M0127033 Revolution 4 w/ FT SSR HD 48-8M0127032 Comp Series
Twin 14.6 19 4 8100-9600 53-60 48-8M0127031 Revolution 4 w/ FT SSR HD 48-8M0127030 Comp Series
Twin 14.6 18 4 9000-10800 49-56 48-8M0137924 Revolution 4 w/ FT SSR HD 48-8M0137925 Comp Series
Twin 14.6 17 4 9600-12200 46-53 48-8M0127029 Revolution 4 w/ FT SSR HD 48-8M0127028 Comp Series
Twin 14.6 15 4 11600-15300 39-46 48-8M0127027 Revolution 4 w/ FT SSR HD 48-8M0127026 Comp Series MERCURY PROPELLER RIGGING CHART

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 735
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
