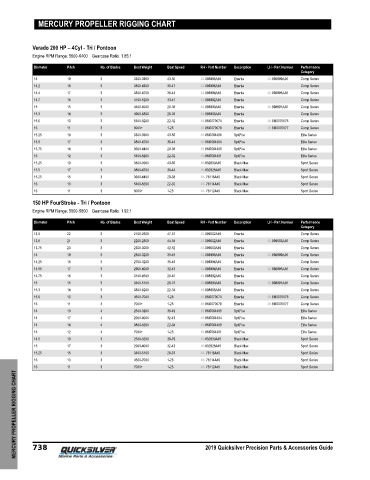

MERCURY PROPELLER RIGGING CHART

Verado 200 HP – 4Cyl ‑ Tri / Pontoon
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.85:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
14 19 3 3300-3900 43-50 48-898998A46 Enertia 48-898999A46 Comp Series
14.2 18 3 3500-4300 39-47 48-898996A46 Enertia Comp Series
14.4 17 3 3800-4700 36-44 48-898994A46 Enertia 48-898995A46 Comp Series
14.7 16 3 4100-5200 33-41 48-898992A46 Enertia Comp Series
15 15 3 4400-6000 29-38 48-898990A46 Enertia 48-898991A46 Comp Series
15.3 14 3 4900-6800 26-35 48-898988A46 Enertia Comp Series
15.6 13 3 5400-8200 22-32 48-8M0070074 Enertia 48-8M0070076 Comp Series
16 11 3 6000+ 1-25 48-8M0070079 Enertia 48-8M0070077 Comp Series
15.25 19 3 3300-3900 43-50 48-8M0084496 SpitFire Elite Series
15.5 17 3 3800-4700 36-44 48-8M0084494 SpitFire Elite Series
15.75 14 3 3600-4400 29-38 48-8M0084493 SpitFire Elite Series
16 12 3 5400-8200 22-32 48-8M0084491 SpitFire Elite Series
15.25 19 3 3300-3900 43-50 48-832830A45 Black Max Sport Series
15.5 17 3 3800-4700 36-44 48-832828A45 Black Max Sport Series
15.25 15 3 3600-4400 29-38 48- 78116A45 Black Max Sport Series
16 13 3 5400-8200 22-32 48- 78114A45 Black Max Sport Series
16 11 3 6000+ 1-25 48- 78112A45 Black Max Sport Series
150 HP FourStroke ‑ Tri / Pontoon
Engine RPM Range: 5000‑5800 Gearcase Ratio: 1.92:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.5 22 3 2100-2600 47-57 48-899202A46 Enertia Comp Series
13.6 21 3 2200-2800 44-54 48-899002A46 Enertia 48-899003A46 Comp Series
13.75 20 3 2300-3000 42-52 48-899000A46 Enertia Comp Series
14 19 3 2500-3200 39-49 48-898998A46 Enertia 48-898999A46 Comp Series
14.25 18 3 2700-3200 35-46 48-898996A46 Enertia Comp Series
14.50 17 3 2900-4000 32-43 48-898994A46 Enertia 48-898995A46 Comp Series
14.75 16 3 3100-4500 29-40 48-898992A46 Enertia Comp Series
15 15 3 3400-5100 26-37 48-898990A46 Enertia 48-898991A46 Comp Series
15.3 14 3 3800-6200 22-34 48-898988A46 Enertia Comp Series
15.6 13 3 4500-7000 1-28 48-8M0070074 Enertia 48-8M0070076 Comp Series
16 11 3 7000+ 1-25 48-8M0070079 Enertia 48-8M0070077 Comp Series
14 19 4 2500-3200 39-49 48-8M0084495 SpitFire Elite Series
14 17 4 2900-4000 32-43 48-8M0084494 SpitFire Elite Series
14 14 4 3800-6200 22-34 48-8M0084493 SpitFire Elite Series
14 12 4 7000+ 1-25 48-8M0084491 SpitFire Elite Series
14.5 19 3 2500-3200 39-79 48-832830A45 Black Max Sport Series
15 17 3 2900-4000 32-43 48-832828A45 Black Max Sport Series
15.25 15 3 3400-5100 26-37 48- 78116A45 Black Max Sport Series
16 13 3 4500-7000 1-28 48- 78114A45 Black Max Sport Series
16 11 3 7000+ 1-25 48- 78112A45 Black Max Sport Series
MERCURY PROPELLER RIGGING CHART 738 2019 Quicksilver Precision Parts & Accessories Guide
