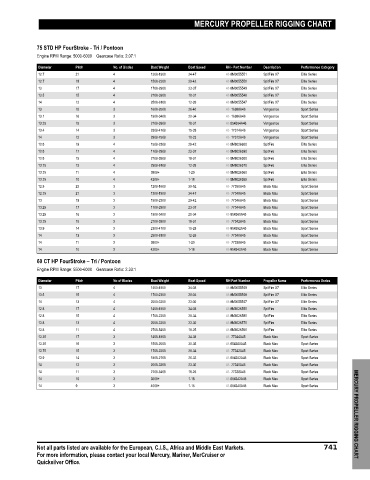

MERCURY PROPELLER RIGGING CHART

75 STD HP FourStroke ‑ Tri / Pontoon
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1300-1900 34-47 48-8M0055551 SpitFire X7 Elite Series
12.7 19 4 1500-2300 29-42 48-8M0055550 SpitFire X7 Elite Series
13 17 4 1700-2900 23-37 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 2100-3900 18-31 48-8M0055548 SpitFire X7 Elite Series
14 13 4 2500-6100 12-26 48-8M0055547 SpitFire X7 Elite Series
13 18 3 1600-2500 26-40 48- 16988A46 Vengeance Sport Series
13.1 16 3 1900-3400 20-34 48- 16986A46 Vengeance Sport Series
13.25 15 3 2100-3900 18-31 48-854354A46 Vengeance Sport Series
13.4 14 3 2300-4700 15-28 48- 17314A46 Vengeance Sport Series
14 12 3 2900-7500 10-23 48- 17312A46 Vengeance Sport Series
12.8 19 4 1500-2300 29-42 48-8M8026600 SpitFire Elite Series
12.8 17 4 1700-2900 23-37 48-8M8026590 SpitFire Elite Series
12.8 15 4 2100-3900 18-31 48-8M8026580 SpitFire Elite Series
13.75 13 4 2500-6100 12-26 48-8M8026570 SpitFire Elite Series
13.75 11 4 3800+ 1-20 48-8M8026560 SpitFire Elite Series
13.75 10 4 4200+ 1-18 48-8M8026555 SpitFire Elite Series
12.5 23 3 1200-1600 39-52 48- 77350A45 Black Max Sport Series
12.75 21 3 1300-1900 34-47 48- 77348A45 Black Max Sport Series
13 19 3 1500-2300 29-42 48- 77346A45 Black Max Sport Series
13.25 17 3 1700-2900 23-37 48- 77344A45 Black Max Sport Series
13.25 16 3 1900-3400 20-34 48-854360A45 Black Max Sport Series
13.75 15 3 2100-3900 18-31 48- 77342A45 Black Max Sport Series
13.9 14 3 2300-4700 15-28 48-854352A45 Black Max Sport Series
14 13 3 2500-6100 12-26 48- 77340A45 Black Max Sport Series
14 11 3 3800+ 1-20 48- 77338A45 Black Max Sport Series
14 10 3 4200+ 1-18 48-854342A45 Black Max Sport Series
60 CT HP FourStroke – Tri / Pontoon
Engine RPM Range: 5500‑6000 Gearcase Ratio: 2.33:1
Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Series
13 17 4 1400-1800 34-38 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 1700-2300 28-34 48-8M0055548 SpitFire X7 Elite Series
14 13 4 2000-3300 23-30 48-8M0055547 SpitFire X7 Elite Series
12.8 17 4 1400-1800 34-38 48-8M8026590 SpitFire Elite Series
12.8 15 4 1700-2300 28-34 48-8M8026580 SpitFire Elite Series
13.8 13 4 2000-3300 23-30 48-8M8026570 SpitFire Elite Series
13.8 11 4 2700-5400 18-25 48-8M8026560 SpitFire Elite Series
13.25 17 3 1400-1800 34-38 48- 77344A45 Black Max Sport Series
13.25 16 3 1500-2000 30-36 48-854360A45 Black Max Sport Series
13.75 15 3 1700-2300 28-34 48- 77342A45 Black Max Sport Series
13.9 14 3 1800-2700 26-32 48-854352A45 Black Max Sport Series
14 13 3 2000-3300 23-30 48- 77340A45 Black Max Sport Series
14 11 3 2700-5400 18-25 48- 77338A45 Black Max Sport Series
14 10 3 3500+ 1-18 48-854342A45 Black Max Sport Series
14 9 3 4000+ 1-15 48-854340A45 Black Max Sport Series MERCURY PROPELLER RIGGING CHART

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 741
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
